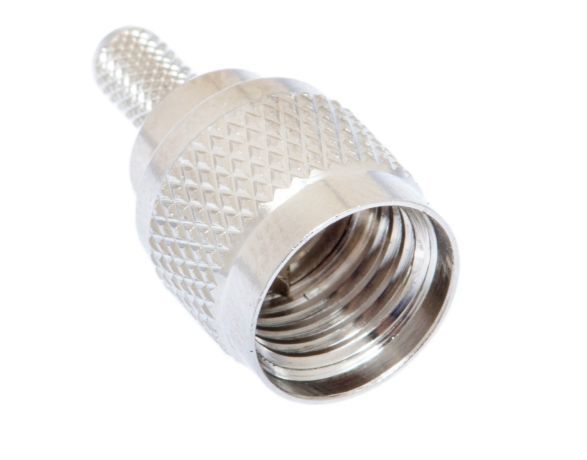

Mini UHF Male Crimp Connector - RG174, RG188, RG316 & LMR-100
|Quantity Discount Pricing|
Quantity Available: 4
A mini UHF connector is a smaller version of a standard UHF connector. They are used on smaller equipment such as mobile devices where size is an important factor. The threaded design makes these connectors a secure and reliable connection. Mini UHF connectors come in male and female variations.
- Fits RG174, RG316 & LMR-100
- Crimp style
- 3 Piece design (connector, pin and ferrule)
- Nickel plated brass
Let ShowMeCables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.
Q: What are other terms used for UHF connectors?
A: UHF connectors are also commonly referred to as amphenol or PL-259 and SO-259 connectors.
- PL-259 is a male UHF connector
- SO-259 is a female UHF connector
Q: What is a UHF connector commonly used for?
A: UHF connectors were formally used in Radar applications but are used more in today's RF applications.
|Features & Specs|
|Cable Type||The type of cable this connector fits?||RG174 RG188 RG316 & LMR-100|
|Form factor||The form factor of this connector?||Straight|
|Style||The style of this connector?||Crimp|
|Impedance||The impedance of this connector?||50 Ohm|
|Gender||The gender of this connector?||Male|
|Material||The material this connector is made from?||Brass with nickel plating|
