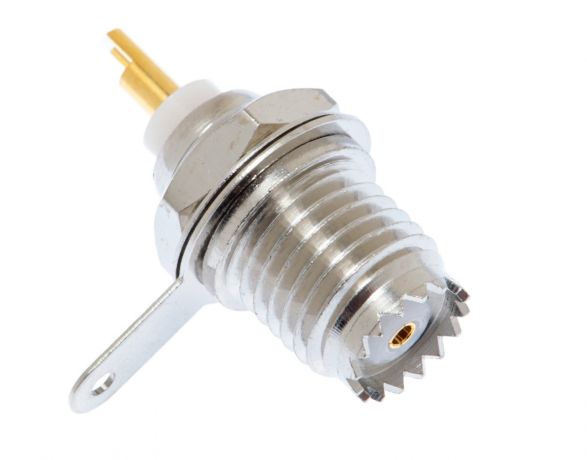

A mini UHF connector is a smaller version of a standard UHF connector. They are used on smaller equipment such as mobile devices where size is an important factor. The threaded design makes these connectors a secure and reliable connection. Mini UHF connectors come in male and female variations.

Features:

Female
Solder style
1 Piece design
Nickel-plated brass

Building Cables?

Let ShowMeCables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.

Reviews

Frequent Q&A

Q: What are other terms used for UHF connectors?

A: UHF connectors are also commonly referred to as amphenol or PL-259 and SO-259 connectors.

PL-259 is a male UHF connector

SO-259 is a female UHF connector

Q: What is a UHF connector commonly used for?

A: UHF connectors were formally used in Radar applications but are used more in today's RF applications.

Specification

Features & Specs
Cable Type	The type of cable this connector fits?	Universal
Form factor	The form factor of this connector?	Straight
Style	The style of this connector?	Solder
Impedance	The impedance of this connector?	50 Ohm
Gender	The gender of this connector?	Female
Material	The material this connector is made from?	Brass with nickel plating
