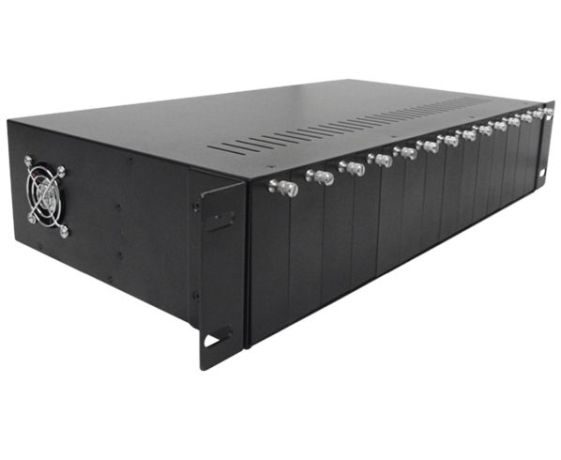

Media Converter Rackmount Chassis w/ Power Supply - 14 Slots - 2U

SKU
15-340-018

2U Media Converter Chassis | 14 Converter Capacity | Plug and Play | Hot Swapping Capabilities | Two Internal Cooling Fans

Quantity Discount Pricing
1-2 3-5 6-7 8-9 10+
$265.08 $260.94 $256.92 $253.03 $249.25

Media Converter Rackmount Chassis w/ Power Supply - 14 Slots - 2U

Continuous operation is of great importance to fiber communication, so this chassis is equipped with optional redundant power supply and hot-swapping function which allows installation or removal of a converter or power supply without powering off the chassis. This redundant power supply helps ensure non-stop reliable operation. Additionally, two cooling fans are installed internally to help regulate temperature, stabilize performance, and extend the lifetime of your media converters. Plug and play installation of up to 14 media converters within the 2U height and standard 19" rackmount width. This chassis also offers over-voltage and over-current protections, as well as media converter power isolation for electrical isolation from each slot.

Features:

  • 14 Media Converter Capacity
  • 2U Height and 19" Width
  • Optional Redundant Power Supply (Sold Separately)
  • Plug and Play Media Converter Installation
  • Hot Swapping of Converter or Power Supplies
  • Two Internal Cooling Fans
  • Accepts 10M; 100M; 1000M; 10/100M; 10/100/1000M
  • Power In: AC 100 V~260 V; or DC 48V
  • Power Out: DC 5V, 12A
  • Parts Included:
    • 2U Rackmount Chassis
    • 1 Power Cord
    • 14 Slot Covers w/ Mounting Screws
    • 14 Media Convert Mounts w/ Attached Mounting Screws
    • 1 User Manual
More Information
Rack Units 2
Write Your Own Review
You're reviewing:Media Converter Rackmount Chassis w/ Power Supply - 14 Slots - 2U
Your Rating
Fault Description Cause Description Maintenance
Power LED
Lamps are off
Haven't connected the power cord or it doesn't have a good connection. Make sure the power cord is connected correctly and make sure there is a good connection.
Link/Act LED
Lamp is off
1. Haven't Connected the electrical cables to the electrical port or it doesn't have a good connection. Make sure the power cord is connected correctly and make sure there is a good connection.
2. Used the wrong electrical cables for electrical connection. Used the wright electrical cables for electrical connection.
3. Any fault with the NIC and the terminal of Ethernet Make sure the NIC and the Ethernet port are working correctly
FX & FX-Link/Act LED
Lamps are off
1. There may be a fault with the optical devices Check the fiber optical devices and the fiber connection to see of they are working correctly.
2. The optical fiber has broken down or there is a bad connection.
3. The optical fiber is over-loss
TX and FX LED
Lamps are normal

but the data can not be transmitted
1. The Connection between the optical fiber and devices is not valid, this will cause the TX power not to work correctly. Check the fiber connectors and make sure the connections between optical fibers and devises are valid.
2. The system only gets power for a moment. If there are any changes in the network it may take a little while for media converters to adapt. If it still is not working after waiting a few minutes and all connections have been completed correctly, then turn off the power and unplug the power cord, wait for a few minutes and then reconnect the power cord turn device back on and try again.
