Leviton Gigamax Cat5e RJ45 Punchdown Keystone Jack
SKU
15-535-045 XX
8P8C | Dual Row | 110 IDC Termination | Cat5e Rated | Gold-Plated Contacts

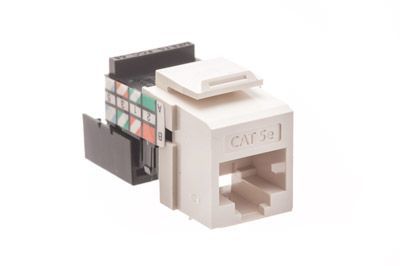

Leviton's Gigamax Cat5e Keystone Jacks are designed and manufactured to the highest standards. The rear 110 type IDC terminations have a dual-row layout. The rear profile is narrow enough to fit high-density patch panels. Color-coded wiring labels show T568A and T568B wiring patterns.
Features:
- Manufacturer: Leviton
- Connector: RJ45
- Rear Termination: 110 type IDC
- Color: (Light) Almond
- Meets EIA/TIA Cat5e Standards
- TSB 568A or 568B UL-Listed
Write Your Own Review
| TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks | ||||
| IDC | T568A | T568B | ||
| Terminals | Pair | Wire Color | Pair | Wire Color |
| PIN5 | 1 | White/Blue | 1 | White/Blue |
| PIN4 | Blue | Blue | ||
| PIN1 | 3 | White/Green | 2 | White/Orange |
| PIN2 | Green | Orange | ||
| PIN3 | 2 | White/Orange | 3 | White/Green |
| PIN6 | Orange | Green | ||
| PIN7 | 4 | White/Brown | 4 | White/Brown |
| PIN8 | Brown | Brown | ||
