LC/LC 50/125 Multimode 40/100GB Duplex Armored Fiber Patch Cable - OM4
Armored | 40GB | 50 Microns | UPC Polish | OFNR Riser-Rated | For High Throughput Applications

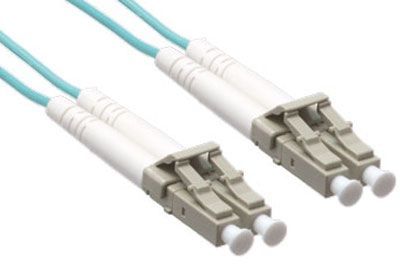

Armored Fiber Optic Cable - OM4 Multimode LC to LC
OM4 fiber optic patch cables feature an extremely high bandwidth--4700MHz/km, more than any other mode. Armored fiber optic cable comes with built-in metal armor that can provide stronger protection of the optical fibers than standard fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.They support 10GB to 550 meters and 100GB to 125 meters. These cables are suitable for high-throughput applications, such as data storage. These cables are fully (backwards) compatible with 50/125 equipment as well as with 10 gigabit Ethernet applications. These connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. With the OM4 cables, you can use longer lengths than OM3 cables while still having an excellent connection.
Please Note: The Industry standard color for OM4 fiber optic cable is now violet. As a customer you may still see aqua color OM4 cables while we run out of our stock. If a specific color is needed, please contact our sales team.
- Connector 1: LC
- Connector 2: LC
- Armor-Lined Jacket
- Ceramic Ferrules
- UPC Polish
- Immune to Electrical Interference
- 100% Optically Inspected and Tested for Insertion Loss
- Jacket: OFNR (Riser-Rated)
- Minimum Bend Radius: 30mm
- Polarity: A(Tx) to B(Rx)
- High-Throughput Applications
- Data Storage
- 10GB to 550 Meters
- 100GB to 125 Meters
Need a different length or connector type for you fiber cable? Please call 1-888-519-9505 for a quote.
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment in the European Union. It stands for Restriction of Hazardous Substances Directive.
REACH, a European Union regulation addresses the production and use of chemical substances and their potential impacts on both human health and the environment. It stands for Registration, Evaluation, Authorisation, and Restriction of chemicals.
The WEEE Directive set collection, recycling and recovery targets for all types of electrical goods in the European community. It stands for Wate Electrical and Electronic Equipment Directive.
* The following information is for information purposes only. It does not guarantee that the product adheres to the following standards. Please check the product description for specific certifications.
What does duplex mean?
Duplex means that there is a set of two connectors on each side of the cable. These are duplex cables.
Can I use any fiber patch cable in my network or do I have to order a specific type?
Whenever you need to add more fiber to an existing network you must match the mode (single mode or multimode) micron size (62.5/125 or 50/125) and connector type.
What is the maximum distance singlemode fiber can transmit a signal?
Singlemode fiber can support gigabit ethernet up to 10 kilometers in length. Typically singlemode signals can travel up to 50 times longer than multimode signals.
What does plenum mean?
Plenum is a rating for cable jackets that ensures that the cables meet installation regulations. Plenum cables have no performance benefits. You would only need plenum cables when you are installing cables in ceilings or other air-return spaces.
What are the differences between the fiber connectors?
ST- Uses a push and turn to lock system
SC- Has a molded plug casing with push and pull locking system
LC- Small form factor that resembles an SC connector
MTRJ- Small form factor with a square plastic casing
What is the difference between 50/125 and 62.5/125 fiber?
50/125 can be run further with less loss than 62.5/125 fiber.
What is the difference between OM3 and OM4 fiber cables?
OM3 and OM4 fiber cables are both laser optimized but they have a couple of major differences. OM3 fiber cables have a bandwidth of 2000 MHz*km. They can support 10GB transmissions up to 300 meters and 40/100GB transmissions up to 100 meters. OM4 fiber cables have a much higher bandwidth than any of the other multimode fiber cables at 4700 MHz*km. They can support 10GB transmissions up to 550 meters and 40/100GB transmissions up to 125 meters.
What is the difference between UPC fiber connectors and APC fiber connectors?
UPC stands for Ultra Physical Contact and APC stands for Angled Physical Contact. UPC connectors are finely polished on the ends of the fibers in order to decrease insertion loss and increase return loss (the higher the return loss the better the connection). UPC connectors have a return loss of more than 50dBs. The APC connectors were made to decrease insertion loss and increase the return loss even more. APC connectors have a return loss of more than 60dB. The end face of the APC connector fiber is polished at an 8 degree angle which prevents back reflections that degrade the performance of your system.
