L-com Waterproof USB Type B Field Installable Connector
CLOSEOUT PRICING! WHILE SUPPLIES LAST!
Female | Solder Type | Waterproof Connector | IP67 Rated
Quantity Discount Pricing
1-24
25-49
50-99
100-249
250-499
500+
$33.59
$32.02
$30.18
$28.88
$27.33
$26.30
Quantity Available: 0

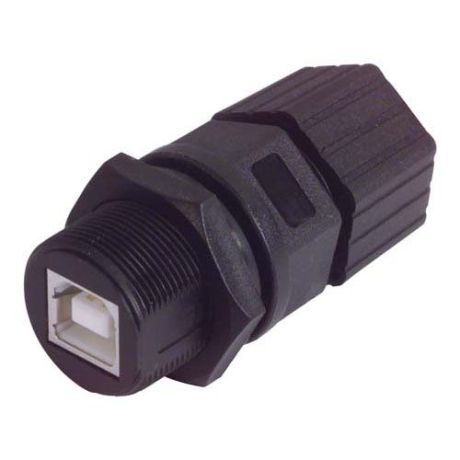

L-com Waterproof USB Type B Field Installable Connector
This connector is perfect to waterproof your USB system setup. Waterproof cables and jacks can save you money by keeping dirt and moisture out of your ports. This connector from L-com allows the user to use the USB B interface with IP67 rated caps and cables. It allows the user to terminate any USB cable with a waterproof connector. When not in use, you can use WPUSB-CVR or WPCVR-USB-1394 to keep the port free of debris.
Features:
Connector Type: USB 2.0 Type B Female
Solder Type
USB 1.1, USB 2.0 Compatible
Simple termination
IP67 rated
Q: What’s the difference between the different USB versions?
USB 1.1 Released in 1998 Specifies max data rates of 12 Mbit/s (Full Speed) Mostly used on devices such as keyboards mice joysticks printers scanners. Still used by some devices that don't need faster data transfer rates. USB 2.0 Released in 2000 Specifies max data rates of 480 Mbit/s (Hi-Speed) Compatible with USB 1.1 but some hardware designed for USB 2.0 may not work with USB 1.1 host controllers. USB 3.0 Released in 2008 Specifies max data rates of 5 Gbit/s (SuperSpeed) A January 2013 press release from the USB group reveals plans to update USB 3.0 to 10 Gbit/s to put it on par with Thunderbolt by mid-2013. Q: What if I need to extend my current USB cable past the 16 foot distance limit?
A: Because passive USB cables have a distance limitation you would need an Active Extension Cable to help boost the signal coming from the source.
Q: I'm unsure what USB adapter or connector I need can you help?
A: Please click on the resource tab to see the USB connector graph. This should help identify the correct cable.
