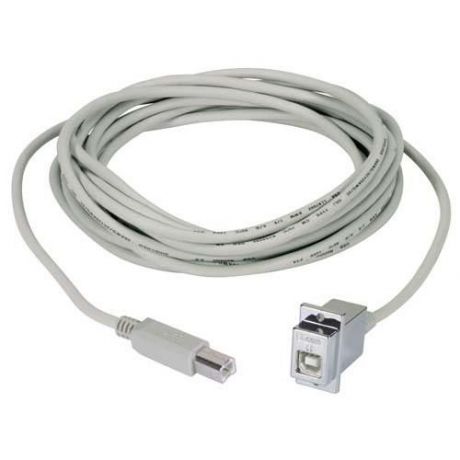

Another unique panel mount USB option features a bulkhead Type B jack to a molded Type B plug attached via USB 2.0 compliant cable. These cables can be directly connected to a mating connector inside an enclosure. These assemblies are fully shielded and use L-com's popular ECF504 style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral.Custom lengths available upon request with minimal quantity requirements.
Features:
30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
20 AWG power leads allow for maximum power transfer
Allows USB cables to be passed through panels or enclosures
Connectors are USB B panel mount female to standard USB B male
