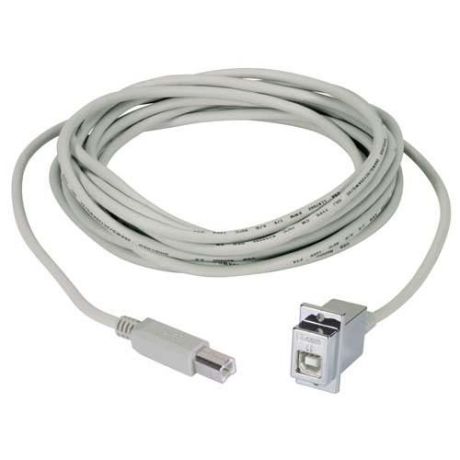

L-com USB Type B Coupler, Female Bulkhead/Male, 36 in.

SKU
ECF504-36BBS

Data Acquisition | Test and Measurement | PC Peripheral Interconnects

Quantity Discount Pricing
1-9 10-24 25+
$18.39 $18.19 $17.39
This item may be subject to additional Tariff Surcharge of $2.69 (15%) each.

Another unique panel mount USB option features a bulkhead Type B jack to a molded Type B plug attached via USB 2.0 compliant cable. These cables can be directly connected to a mating connector inside an enclosure. These assemblies are fully shielded and use L-com's popular ECF504 style housing that can be used with virtually any panel thickness. The recommended 4-40 mounting screws must be purchased separately (P/N ECF440). Twisted pair data lines help reduce crosstalk while 20 AWG power conductors enable maximum power transfer from host to peripheral.Custom lengths available upon request with minimal quantity requirements.

Features:

  • 20 AWG power leads allow for maximum power transfer
  • 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
  • Allows USB cables to be passed through panels or enclosures
  • Connectors are USB B panel mount female to standard USB B male
  • Screw mount for secure installations
