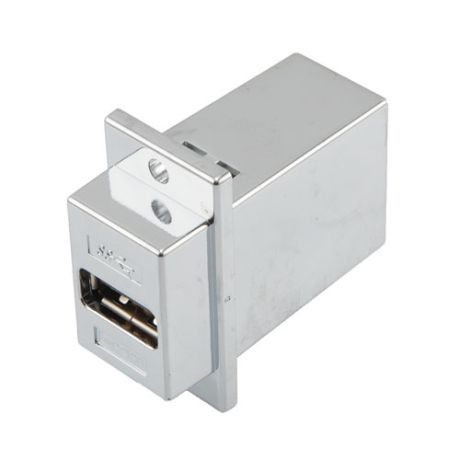

L-com USB 3.0 High Retention Adapter Coupler Panel Mount ECF Flange Style, A Type Female to B Type Female, Chrome Plated Shielded ABS, Silver
PC, printer and server peripheral interconnects and computing | Data acquisition and storage| Test and measurement | Video and data transfer | Office and home office (work from home)
|Quantity Discount Pricing|
ECF504-30-UBAS-HR USB 3.0 High Retention Adapter Coupler Panel Mount ECF Flange Style is In stock and shipping same day. The L-com B Type Female to A Type Female adapter/coupler allows USB cables to be efficiently passed through a panel or enclosure. These high retention USB 3.0 adapters / couplers ECF504-30-UBAS-HR are using an efficient ECF style flange mount design. This USB 3.0 B Type to A Type adapter (coupler) is used to prevent accidental disconnects for critical applications.
The panel mount USB 3.0 adapter ECF504-30-UBAS-HR is a high retention, silver coupler with a B type female to an A type female design. built with a shielded, chrome plated housing. This Silver B Type Female to A Type Female Adapter Coupler is rated for USB 3.0. High retention A type jacks provide a mating force of 40N max and an un-mating force of 15N min while B type jacks provide a mating force of 60N max and an un-mating force of 15N min. Our B Type Female to A Type Female Adapter Coupler is 50% higher than standard USB ports making it difficult to unintentionally unplug your cable. These high retention USB 3.0 adapters / couplers ECF504-30-UBAS-HR work with standard USB connectors and do not require special plugs.
- The ECF504-30-UABS-HR is a silver USB 3.0 coupler with an A type female to B type female design built using high retention ports and a shielded, chrome plated housing
- High Retention A jacks provide a mating force of 40N max, High Retention B jacks provide a mating force of 60N max and both provide an un-mating force of 15N min; this is 50% higher retention than standard USB connectors
- Allows USB cables to be passed through panels or enclosures using L-com's ECF style flange mount design with screw mounting for secure installation
- Rated for USB 3.0 applications with 30 micro inch gold plated contacts to provide reliable connections with repeated mating cycles
- Available connector options include USB 2.0 and 3.0 female type A-A, B-A & A-B
