48VDC Power-Over-Ethernet devices | 48VDC IP surveillance cameras | 48VDC VoIP (Voice over Internet Protocol) telephones | 48VDC wireless LAN PoE Access Points and Bridges | Can be used with any of L-com's 120V weatherproof enclosures with 120VAC outlets

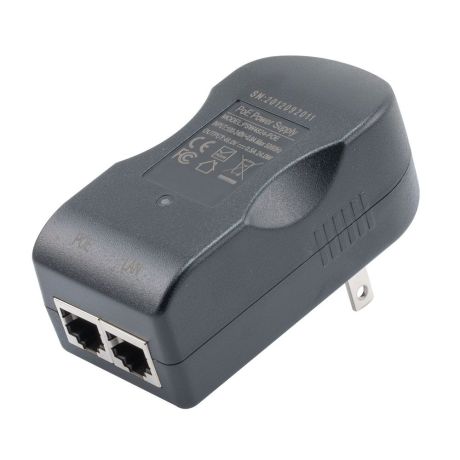

The POEINJ-PSW4824 is a Power-over-Ethernet (PoE) Injector/Midspan with integral 48VDC, 24 Watt power supply. It provides 48VDC power for multiple* PoE-equipped devices by "Injecting" DC power through the CAT5 Ethernet cable. It is compatible with Access Points and other equipment supporting the IEEE standard PoE pinout (Pins 4 & 5 Power + / Pins 7 & 8 Power -) and the 48VDC power requirement.
*The total number of devices that can be powered will depend on the power requirements of each device used.
Compact Wall Mount Design
Since the POEINJ-PSW4824 is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures. The POEINJ-PSW4824 can convert any of L-com's 120VAC industrial enclosures into a 48VDC PoE ready enclosure.
Built in protection circuits
The POEINJ-PSW4824 feature built in over voltage, over current and short circuit protection. If an overload is detected, the power shuts down automatically; when the overload is cleared, the power is restored.
