L-com Metal Armored HDMI Cables with Ethernet

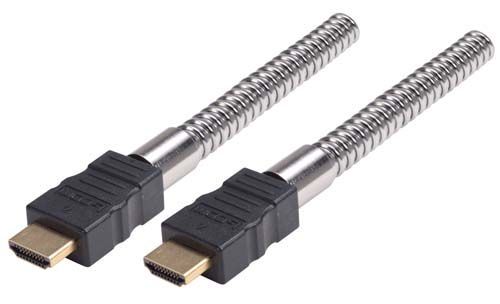

Metal Armored HDMI Cable with Ethernet
This unique cable features a stainless steel crush resistant jacket over our premium HDMI cable to provide protection in applications where standard cables would be damaged due to excessive force. Crush resistance is 1500 PSI (Pounds per Square Inch). Additional features include rugged over mold connectors, 30 microinch gold plated contacts and double shielding which protects your A/V signals from EMI/RFI.
Features:
- HDMI cable assembly with Ethernet and metal protective outer jacket
- Stainless steel material provides 1500 PSI crush resistance
- 30 microinch gold plated contact pins to minimize signal loss and insure many mating cycles
- Foil plus braid shield provides maximum protection against EMI/RFI
- Available in 6 lengths ranging from 0.5m to 5m
Applications:
- Industrial PCs
- Home theatre
- 1080p
- High Speed HDMI with Ethernet applications
Product Questions
Q: What is HDMI?
A: High-Definition Multimedia Interface (HDMI) is a fully digital audio and video interface. HDMI brings the highest quality video to your home theater. Since HDMI supports both audio and video it simplifies wiring significantly.
Q: What is HDMI with ethernet?
A: The 'with Ethernet' option allows a device that has Internet access to share that connection with another device that isn't directly connected to the Internet. For instance you could have a TV connected directly to the internet then use the HDMI cable with Ethernet to share that internet connection with your Blu-Ray player. Please keep in mind both devices must be Ethernet Sharing compatible for this feature to work. The HDMI with Ethernet cable will still perform normally for HDTV even if an Ethernet signal is not present.
Q: Is HDMI backwards compatible with previous versions?
A: Yes HDMI is fully backwards compatible.
Q: What are the advantages of using HDMI over S-Video or component?
A: The quality of audio and video increases significantly. Images and sounds will be sharper and defined. These benefits are clearly seen ar resolutions like 1080p.
Q: What does the jacket rating CL2 CM and CMP mean?
- CL2 is the standard type of PVC jacket used for low voltage cable. CL2 rated cables are often referred to as in-wall rated cables and can be run almost anywhere except plenums. CL2 is more common for non-professional use.
- CM is standard comminications cabling that is not run in walls or in plenum air spaces.
- CMP is a rating that is given to cables that have passed a stringent burn test and are able to be run through plenum air spaces. Plenum air spaces include drop ceilings and non-ducted HVAC air returns.
