J-Hook Cable Support

SKU
J-Hook Cable Support
3/4 Inch Opening | 30 Lb. Load | Capacity: 16 Cat5e or 10 Cat6 Cables | UL Listed | Retainer Clip Included

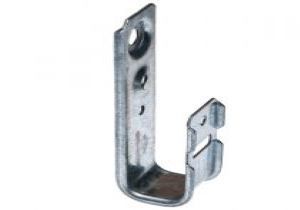

3/4 Inch J-Hook Cable Support

This 3/4 Inch J-Hook Cable Support can be attached to a wide variety of structures and materials. Using beam clamps, clips, screws, or nails, you can easily attach this J-Hook to a structure by using the pre-existing hole. These versatile hooks are designed to reduce the chance of damaging cables by providing great support, eliminating stress, and following the natural curves and bends of cable.

Features:

  • 3/4 Inch
  • Retainer Clip Included
  • Supports All Cable Types
  • Load Rating: 30 Lbs.
  • Capacity: 16 Cat5e or 10 Cat6 Cables
  • UL Listed
Write Your Own Review
You're reviewing:J-Hook Cable Support
Your Rating

Q: How much distance should I put between each of my cable supports?


A: You don’t want to put too much weight on any type of cable support. It is a good idea to put a cable support such as a J-Hook or Bridle Ring every 4 to 5 feet. This ensures that your cables will not stretch or fall under too much weight.


Q: What kind of support do I need for data cabling?


A: When you are dealing with sensitive high performance data cables such as fiber optic cables you need to use either J-Hooks or Bridle Rings with saddles. For all other cable types you can use any type of cable support such as standard Bridle Rings.


Q: How do I know what size J-Hook to buy for my cable run?


A:


¾ Inch J-Hook:



  • Capacity: 16 Cab5e or 10 Cat6 Cables


1 5/16 Inch J-Hook:



  • Capacity: 50 Cab5e or 32 Cat6 Cables


2 Inch J-Hook:



  • Capacity: 80 Cab5e or 50 Cat6 Cables


4 Inch J-Hook:



  • Capacity: 300 Cab5e or 185 Cat6 Cables

Features & Specs
Size
The size of the product?3/4 Inch
CapacityHow much the product can hold?30 Lbs
Material
What the product is made of?Pre-Galvanized Steel
