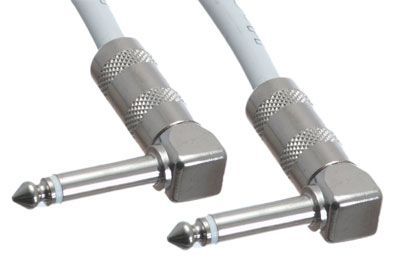

Hosa Guitar Patch Cable - 1/4 Mono Right Angle - Male to Male
Hosa Guitar Cable - 6IN 1/4' Right Angle Mono Male Cable
1/4 inch cables are typically used for analog signals, primarily audio. This cable is designed to interconnect electric guitar pedal effects. The all-metal right-angle plugs allow close spacing of pedal effects on pedal boards. Pro-audio cables are perfect for novice and professional musicians.
- Connector A: Right-angle 1/4 inch Mono Male
- Connector B: Right-angle 1/4 inch Mono Male
- Serviceable, all-metal plugs for live-sound applications
- 24 AWG Oxygen-Free Copper (OFC) conductor for enhanced signal clarity
- 90% OFC spiral shield for effective EMI and RFI rejection and flexibility
Q: What does TS mean? What is a TS connector used for?
A: TS is the abbreviation for “Tip Sleeve IN and refers to a specific type of 1/4″ connector that is set up for 2-conductor unbalanced operation. One insulator ring separates the tip and sleeve. The tip is generally considered the “hot IN or the carrier of the signal while the sleeve is where the ground or shield is connected. TS cables are best known as guitar or line-level instrument cables.
Q: What does TRS mean? What is a TRS connector used for?
A: TRS is the abbreviation for “Tip Ring Sleeve. IN It looks like a standard 1/4″ plug but with an extra “ring IN on its shaft. TRS cables have two conductors plus a ground (shield). TRS connectors are commonly used to connect balanced equipment or for running both left and right mono signals to stereo headphones.
Q: Why is a ¼ IN connector sometimes called a “phone plug IN?
A: The original 1⁄4 in (6.35 mm) version dates from 1878 when it was used for manual telephone exchanges making it possibly the oldest electrical connector standard still in use. It was used for years by telephone operators to patch telephone connections together.
|Features & Specs|
|Connector Side A||Connectors on this cable??||Right angle 1/4 IN TS Male|
|Connector Side B||Connectors on this cable?||Right angle 1/4 IN TS Male|
|Length||The Length of the cable?||6 Inch|
|Signal Type||Type of signal this cable can carryh?||Mono / Unbalanced|
|Use||The use for this cable??||Audio|
|Color||The color of the cable?||Black|
|Shielding||The type of shielding??||Fully shielded|
