Heavy Duty 2 GHz TV-Satellite Diplexer / Combiner - UHF/VHF

900-2050 Mhz & 40-860 MHz | 500mA DC Passing | F-Type Female Ports | Separates/Combines Signals
Quantity Discount Pricing
1-4 5-9 10-24 25-49 50+
$6.89 $6.59 $6.19 $5.89 $5.40

Quantity Available: 6

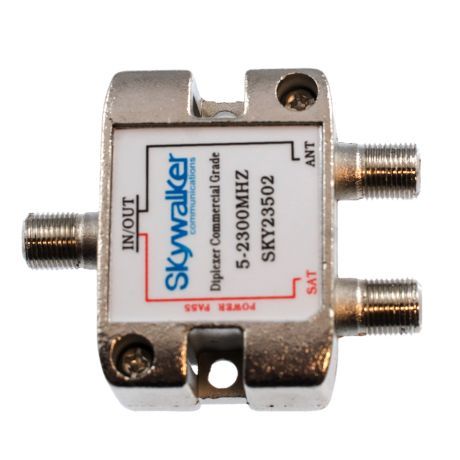

Heavy Duty Professional Grade 2 GHz TV-Satellite Diplexer / Combiner - UHF/VHF

Diplexers are used to combine or separate different frequency signals. They allow for off-air and satellite signals to be run on the same feed line. This saves time and installation cost. Diplexers are commonly used in pairs. Rated for indoor/outdoor use.


  • Separates or combines off-air TV-antenna and satellite signals from or onto a single feed-line
  • Mixing or Diplexing 900-2050 MHz and 40-860 MHz Bands
  • 500mA DC Power Passing
  • All Ports F-type Female
  • Grounding Block
  • Mounting Screws Included
    Write Your Own Review
    You're reviewing:Heavy Duty 2 GHz TV-Satellite Diplexer / Combiner - UHF/VHF
    Your Rating

    Q: When would I want to block DC power?

    A: Many devices aren't designed to take in DC power so you would want to use a DC power blocking splitter to make sure that your equipment doesn't get fried. They stop the DC voltage from getting through thus protecting your antennas TVs amplifiers etc.

    Features & Specs
    Connector TypeThe type of connectors used on this diplexer?F-Type Female
    Frequency RangeFrequencies supported by this diplexer?40 to 2050 MHz
    DC Passing PortsNumber of Ports that will allow DC power through the diplexer ?1 Port Power Passing
