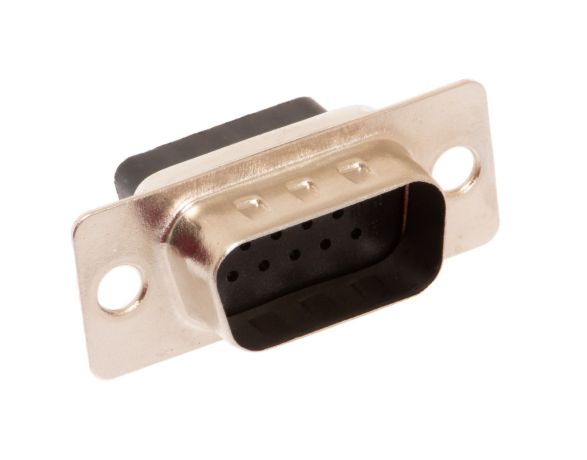

HD15 VGA Male Crimp Connector

SKU
576
HD15 VGA | Male | Crimp Type | Tinned Copper Shell | Create Custom Pinout
Quantity Discount Pricing
1-4 5-9 10-49 50-99 100+
$1.75 $1.44 $1.37 $1.29 $1.20

HD15 Male Crimp Connectors are a fantastic way to repair or construct your own Serial, Networking, Video, or Control cables. Use along with our HD D-Sub Crimp Pins and Plastic or Metal Hoods to create a durable connection for your application. These connectors are made with high-quality materials to ensure longevity.

Features:

  • HD15 VGA Male
  • Crimp Type
  • Tinned Copper Shell
  • Nickel Thermoplastic Insulator
    Write Your Own Review
    You're reviewing:HD15 VGA Male Crimp Connector
    Your Rating

    What are D-Sub connectors?

    D-Sub connectors are named after their D-shaped form. They come in a variety of pin numbers to fit your computer application needs.

    Are D-Sub and Serial Connectors the same?

    Yes, they are the same thing.

    What are the advantages of using a solder connector?

    When using solder connectors, it is a more permanent solution as compared to crimp connectors. You do not have to worry about pins being pulled out on solder connectors which can happen in crimp connectors. For this reason, soldering can be more reliable.

    What are the advantages of using a crimp connector?

    Using crimp connectors is often just as reliable as solder connectors, but they take less time to install. Installation is as simple as squeezing a crimping tool to secure the connection.

    What are the benefits of using a plastic metalized plastic or metal hood for my connector?

    Plastic hoods are the most economical option when constructing D-Sub connectors. Metalized plastic hoods provide shielding against EMI/RFI interference while still being an economical option. Metal hoods provide durability as well as shielding against EMI/RFI interference.

    What all do I need to assemble a HD15 Connector?

    You only need a few things to make a HD15 Connector. There are two types you can choose from; solder type or crimp type.

    Solder Type: To make a solder type connector you will need either a male or female solder type connector, a HD15 hood (metal or plastic depending on your preference), a HD15 grommet, and a soldering iron.

    Crimp Type: To make a crimp type connector you will need either a male or female crimp type connector, HD D-Sub crimp pins to match the gender of your connector, a HD15 hood (metal or plastic depending on your preference), a HD15 grommet, and a D-Sub crimp tool.

    VGA Pinout
    Pin NameDirectionDescription
    1REDRed Video
    2GREENGreen Video
    3BLUE

    Blue Video

    4RESRESERVED
    5GNDGround
    6RGNDRed Ground
    7GGNDGreen Ground
    8BGNDBlue Ground
    9KEYKey (No pin)/ Optional +5V output from graphics card
    10SGNDSync Ground
    11ID0Monitor ID Bit 0 (optional)
    12SDAI2C bidirectional data line
    13HSYNC or CSYNCHorizontal Sync (or Composite Sync)
    14VSYNCVertical Sync which works also as data clock
    15SCLI2C data clock in DDC2 Monitor ID3 in DDC1
