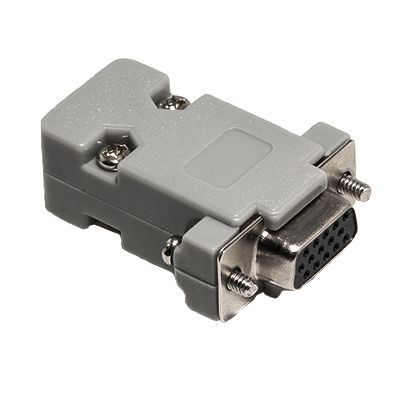

HD15 VGA Female Solder Connector Kit - Plastic
SKU
1125
Solder Connector, Plastic Hood, & All Hardware | Gold-Plated Contacts | Create Custom Pinout
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $4.23 | $3.28 | $2.85 | $2.55 | $2.29 |
Quantity Available: 0
These HD15 VGA Female Solder Connector Kits are used to change the connection type of a cable. They can easily be soldered to a custom length cable creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. The kit includes the solder connector, a plastic hood, and all hardware.
Features:
- HD15 VGA Female
- Solder Type
- 15 Pins
- Gold-Plated Contacts
- Tinned Copper Shell
- Nickel Thermoplastic Insulator
- Includes: Connector, Plastic Hood, & All Hardware
Write Your Own Review
| Pin | Name | Direction | Description |
|---|---|---|---|
| 1 | RED | → | Red Video |
| 2 | GREEN | → | Green Video |
| 3 | BLUE | → | Blue Video |
| 4 | RES | RESERVED | |
| 5 | GND | Ground | |
| 6 | RGND | Red Ground | |
| 7 | GGND | Green Ground | |
| 8 | BGND | Blue Ground | |
| 9 | KEY | Key (No pin)/ Optional +5V output from graphics card | |
| 10 | SGND | Sync Ground | |
| 11 | ID0 | ← | Monitor ID Bit 0 (optional) |
| 12 | SDA | ← | I2C bidirectional data line |
| 13 | HSYNC or CSYNC | → | Horizontal Sync (or Composite Sync) |
| 14 | VSYNC | → | Vertical Sync which works also as data clock |
| 15 | SCL | ← | I2C data clock in DDC2 Monitor ID3 in DDC1 |
| Features & Specs | ||
|---|---|---|
| Connector | Type of Connector? | HD15 VGA |
| Gender | The gender of this connector? | Female |
| Style | Type termination style of this connector? | Solder |
| Contact Material | What the contacts are made with? | Gold-Plated |
| Housing | What the connector housing is made with? | Plastic |
| Form Factor | The Form Factor of the Connector? | Straight |
