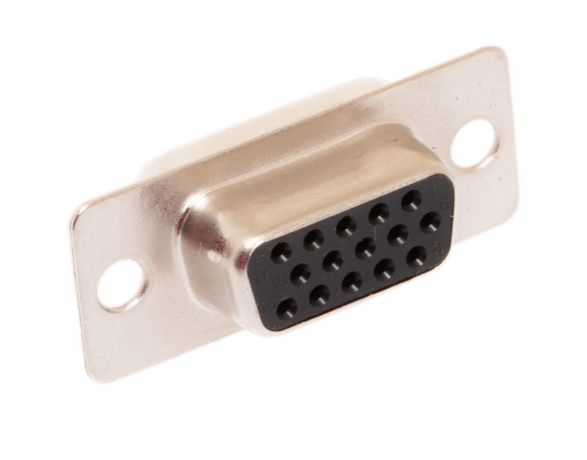

HD15 VGA Female Solder Connector

HD15 VGA | Female | Solder Type | Gold-Plated Contacts | Tinned Copper Shell | Create Custom Pinout
100 % of 100
Quantity Discount Pricing
1-4 5-9 10-49 50-99 100+
$2.09 $1.58 $1.35 $1.19 $1.09

These HD15 VGA Female Solder Connectors are used to terminate the connection type of a cable. They can easily be soldered to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.


  • HD15 VGA Female
  • Solder Type
  • 15 Pins
  • Gold-Plated Contacts
  • Tinned Copper Shell
  • Nickel Thermoplastic Insulator
Write Your Own Review
You're reviewing:HD15 VGA Female Solder Connector
Your Rating

Product Questions

No questions yet. Be the first to ask the question!

What are D-Sub connectors?

D-Sub connectors are named after their D-shaped form. They come in a variety of pin numbers to fit your computer application needs.

Are D-Sub and Serial Connectors the same?

Yes, they are the same thing.

What are the advantages of using a solder connector?

When using solder connectors, it is a more permanent solution as compared to crimp connectors. You do not have to worry about pins being pulled out on solder connectors which can happen in crimp connectors. For this reason, soldering can be more reliable.

What are the advantages of using a crimp connector?

Using crimp connectors is often just as reliable as solder connectors, but they take less time to install. Installation is as simple as squeezing a crimping tool to secure the connection.

What are the benefits of using a plastic metalized plastic or metal hood for my connector?

Plastic hoods are the most economical option when constructing D-Sub connectors. Metalized plastic hoods provide shielding against EMI/RFI interference while still being an economical option. Metal hoods provide durability as well as shielding against EMI/RFI interference.

What all do I need to assemble a HD15 Connector?

You only need a few things to make a HD15 Connector. There are two types you can choose from; solder type or crimp type.

Solder Type: To make a solder type connector you will need either a male or female solder type connector, a HD15 hood (metal or plastic depending on your preference), a HD15 grommet, and a soldering iron.

Crimp Type: To make a crimp type connector you will need either a male or female crimp type connector, HD D-Sub crimp pins to match the gender of your connector, a HD15 hood (metal or plastic depending on your preference), a HD15 grommet, and a D-Sub crimp tool.

VGA Pinout
Pin NameDirectionDescription
1REDRed Video
2GREENGreen Video

Blue Video

6RGNDRed Ground
7GGNDGreen Ground
8BGNDBlue Ground
9KEYKey (No pin)/ Optional +5V output from graphics card
10SGNDSync Ground
11ID0Monitor ID Bit 0 (optional)
12SDAI2C bidirectional data line
13HSYNC or CSYNCHorizontal Sync (or Composite Sync)
14VSYNCVertical Sync which works also as data clock
15SCLI2C data clock in DDC2 Monitor ID3 in DDC1
Features & Specs
Connector Type of Connector? HD15 VGA
Gender The gender of this connector? Female
Style Type termination style of this connector? Solder
Contact Material What the contacts are made with? Gold-Plated
