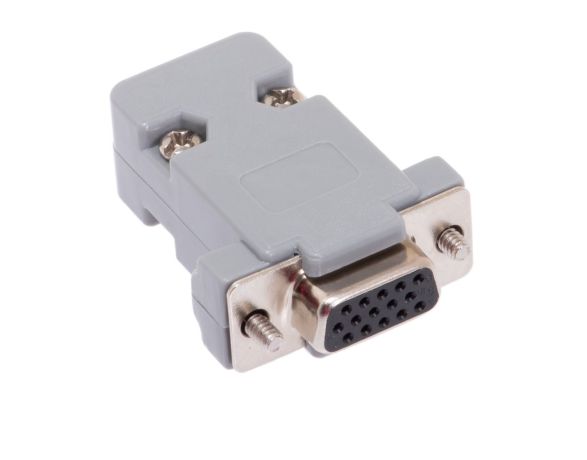

HD15 VGA Female Crimp Connector Kit - Plastic
SKU
1122
Crimp Connector, Pins, Plastic Hood, & All Hardware | Gold-Plated Contacts | Create Custom Pinout
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $7.89 | $6.19 | $5.19 | $4.63 | $4.07 |
These HD15 VGA Female Crimp Connector Kits are used to change the connection type of a cable. They can easily be soldered to a custom length cable creating a durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. The kit includes the crimp connector, crimp pins, a plastic hood, and all hardware.
Features:
- HD15 VGA Female
- Crimp Type
- 15 Pins
- Tinned Copper Shell
- Nickel Thermoplastic Insulator
- Includes: Connector, Crimp Pins, Plastic Hood, & All Hardware
Write Your Own Review
Product Questions
| Pin | Name | Direction | Description |
|---|---|---|---|
| 1 | RED | → | Red Video |
| 2 | GREEN | → | Green Video |
| 3 | BLUE | → | Blue Video |
| 4 | RES | RESERVED | |
| 5 | GND | Ground | |
| 6 | RGND | Red Ground | |
| 7 | GGND | Green Ground | |
| 8 | BGND | Blue Ground | |
| 9 | KEY | Key (No pin)/ Optional +5V output from graphics card | |
| 10 | SGND | Sync Ground | |
| 11 | ID0 | ← | Monitor ID Bit 0 (optional) |
| 12 | SDA | ← | I2C bidirectional data line |
| 13 | HSYNC or CSYNC | → | Horizontal Sync (or Composite Sync) |
| 14 | VSYNC | → | Vertical Sync which works also as data clock |
| 15 | SCL | ← | I2C data clock in DDC2 Monitor ID3 in DDC1 |
| Features & Specs | ||
|---|---|---|
| Connector | Type of Connector? | HD15 VGA |
| Gender | The gender of this connector? | Female |
| Style | Type termination style of this connector? | Crimp |
| Housing | What the connector housing is made with? | Plastic |
| Form Factor | The Form Factor of the Connector? | Straight |
