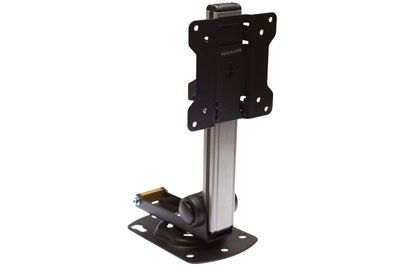

Enjoy your favorite TV shows everywhere. Handy way to mount a small flat screen TV in a cabinet or around a corner in your kitchen, workspace and children's room. This ceiling mount can be easily folded (push-in fold/push-in unfold) and ideal for cathedral ceiling installation and space saving. Its swivel, sliding can offer the best viewing angle. It support most 13-27 monitors up to 44lbs.
Features:
Folding ceiling mount bracket for 13 inch - 27 inch TVs
Push-in fold/push-in unfold
Tilt: -90° (down) ~ 0° (up)
Minimum VESA 75x75 Mounting Pattern
Maximum VESA 100x100 Mounting Pattern
Arm length 7 to 12 inches (180 to 310mm) adjustable
Mounting Hardware included
Max load: 44bs
Please note:The compatible TV sizes listed here are a guide. It does not guarantee compatibility. To fully determine if your TV is compatible with this mount, check the VESA pattern and the weight on your TV.
A: When choosing a bracket compatibility is determined by weight and VESA pattern. The weight of your TV must not exceed the maximum capacity the bracket can hold. Secondly your TV must conform to the proper VESA (see below for an explanation of VESA) pattern. The VESA pattern determines the placing of the screw holes on the TV. Your TV instruction manual should provide which patterns your TV supports.
Although we give a recommended size that does not guarantee compatibility. We provide them as general guidelines.
Q: What is a VESA mounting pattern?
A: VESA mounting pattern technically called VESA Mounting Interface Standard (MIS) is the industry standard for mounting flat panel monitors and TVs. It is widely adopted in the industry and allows for easy compatibility between mounts and TVs.
The smallest VESA configuration is 50mm x 50mm. This means their are four screw holes in a square pattern 50mm apart.
The largest VESA configuration is 800mm x 400mm. The screws are in a rectangular pattern 800mm apart on the long edge and 400mm on the short edge.
Check your instruction manual for the VESA pattern your TV supports.
