ShowMeCables RG6 Quad Shield Coax Cable - CCS
SKU
80-600-220 XX
75 Ohm | 18 AWG | Shielded | FR-PVC | CMX/CL2X Rated | Tested to 3 GHz | U/V Inhibitor | UL Listed

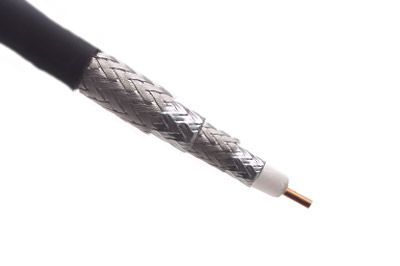

RG6 is commonly used for digital HDTV, CATV, satellite television, and outdoor TV antennas installations. This cable features a CMX/CL2X rated FR-PVC jacket. Internally this cable is protected from RFI and EMI interference by a 60% aluminum braid, 100% aluminum foil shield, 40% aluminum braid, and another 100% aluminum foil shield. Quad shield cable is far superior at rejecting interference and should be used in high EMI/RFI environments. The center conductor is sweep tested to 3.0 GHz and is made from 18 AWG solid Copper-clad Steel. RG6 is commonly terminated with an F-Type, BNC, or RCA connector.
Features:
- 75 Ohm
- 18 AWG Copper-clad Steal Conductor
- 60% Braid and 40% Braid Shield
- 2x 100% Foil Shield
- CMX/CL2X Rated
- UL Listed
- FR-PVC Jacket
- Sweep-Tested to 3 GHz.
- Professional Grade
- Digital and Analog Applications
- U/V Inhibitor
- Foot Markings
- RoHS Compliant
Write Your Own Review
Product Questions
| Cable | Cable Type | Jacket | Inner Conductor Material | Inner Conductor Diameter (mm) | Dielectric | Outer Conductor (Shield) | Overall Braid | Bend Radius (mm) | Velocity of Propagation (%) | Dielectric Constant | Impedance | Capacitance | DC Resistance (loop) | Voltage Rating | Frequency Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80-600-220 BK | RG6 | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 75 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 126.3 Ohms | 60 VDC | 3 GHz |
| 80-600-250 BK | RG6 | PVC | Cu | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 62.5 Ohms | 60 VDC | 3 GHz |
| 80-600-190 BK/WH | RG6 | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 149 Ohms | 60 VDC | 3 GHz |
| 80-600-250 WH | RG6 | PVC | Cu | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 62.5 Ohms | 60 VDC | 3 GHz |
| 80-600-280 BK | RG6 | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 149 Ohms | 60 VDC | 3 GHz |
