ShowMeCables RG6 Dual Shield Outdoor / Direct Burial Coax Cable - CCS
SKU
80-600-280 XX
75 Ohm | 18 AWG | Shielded | PVC | CMX Rated | Tested to 3 GHz | U/V Inhibitor | UL & ETL Listed

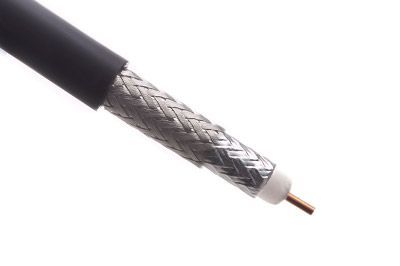

Outdoor RG6 is designed for outdoor applications, including direct burial installs. RG6 is commonly used for digital HDTV, CATV, satellite television, and outdoor TV antennas installations. This cable features a CMX rated outdoor PVC jacket. Internally this cable is protected from RFI and EMI interference by a 40% aluminum braid and 100% aluminum foil shield. The center conductor is sweep tested to 3.0 GHz and is made from 18 AWG solid copper-clad steel. RG6 is commonly terminated with an F-Type, BNC, or RCA connector.
Features:
- 75 Ohm
- 18 AWG Solid Copper-clad Steel Conductor
- 40% Braid/100% Foil Shield
- CMX Rated
- UL Listed
- ETL Listed
- PVC Jacket
- Outdoor/ Direct Burial
- Sweep-Tested to 3 GHz.
- Professional Grade
- Digital and Analog Applications
- U/V Inhibitor
- Foot Markings
Write Your Own Review
Product Questions
| Cable | Cable Type | Jacket | Inner Conductor Material | Inner Conductor Diameter (mm) | Dielectric | Outer Conductor (Shield) | Overall Braid | Bend Radius (mm) | Velocity of Propagation (%) | Dielectric Constant | Impedance | Capacitance | DC Resistance (loop) | Voltage Rating | Frequency Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80-600-280 BK | RG6 | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 149 Ohms | 60 VDC | 3 GHz |
| 80-600-190 BK/WH | RG6 | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 149 Ohms | 60 VDC | 3 GHz |
| 80-600-220 BK | RG6 | PVC | CCS | 1.02 | Foam PE | AL foil | AL wire | 75 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 126.3 Ohms | 60 VDC | 3 GHz |
| 80-600-250 BK | RG6 | PVC | Cu | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 62.5 Ohms | 60 VDC | 3 GHz |
| 80-600-250 WH | RG6 | PVC | Cu | 1.02 | Foam PE | AL foil | AL wire | 70 mm | 85% | 1.4 | 75+/-3 Ohms | 53.2 pF/m | 62.5 Ohms | 60 VDC | 3 GHz |
