ECore RG59 95% Shield Outdoor Coax Cable with 18/2 Power - BC

SKU
80-590-185 XX

75 Ohm | 20 AWG | Shielded | PVC | CMX Rated | Bare Copper Conductor | UL & ETL Listed

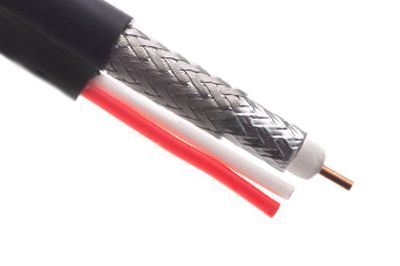

The Outdoor CCTV RG59 with 18/2 Power wire Coaxial Cable has a siamese PVC jacket, making it suitable for closed circuit television applications. This cable features an outdoor/direct burial rated PVC jacket. Internally this cable is protected from RFI and EMI interference by a 95% bare copper braided shield. The center conductor is made from 18 AWG solid copper. The power wire is made from 1 pair 18 AWG stranded pure copper. RG59 is commonly terminated with an F-Type, BNC, or RCA connector. Save time and money by running the video and power cable at the same time.

Features:

  • 75 Ohm
  • 20 AWG Bare Copper Conductor
  • 95% Copper Braid Shield
  • 18/2 Copper Power Wire
  • PVC Jacket
  • Outdoor/Direct Burial
  • CMX Rated
  • UL/ETL Listed
  • Professional Grade
  • Foot Markings
Write Your Own Review
You're reviewing:ECore RG59 95% Shield Outdoor Coax Cable with 18/2 Power - BC
Your Rating
Features & Specs
Cable TypeThe type of cable described?Outdoor RG59 95% Shield w/Power
ImpedanceImpedance of cable?75 ohms
Center ConductorThe type of material used in the center conductor of the cable??Bare Copper (BC)
Center Conductor DiameterDiameter of center conductor in inches?.025'
DielectricMaterial used as dielectric in the cable??Foam PE (Polyethylene)
Jacket MaterialThe type of material used in the jacket of the cable?Polyvinyl chloride (PVC)
Cable DiameterDiameter in inches of cable?.24'
