Dual PC Monitor Counterbalance Desk Mount - 13 inch - 27 inch
This counter balance mount is constructed with solid steel, elegant die casting aluminum and are integrated with innovative counterbalance technology. Each arm can hold screen up to 44lbs. Built-in spring tension gauge can be easily adjusted to fit varied weights that arm holds. Advanced VESA plate includes -15 to +15 degrees of fingertip tilt that enable both sit to stand and touch screen applications. The plate also allows +/- 3 degrees screen level adjustment. A hidden cable management integrated in arm easily conceals cables beneath channel covers.

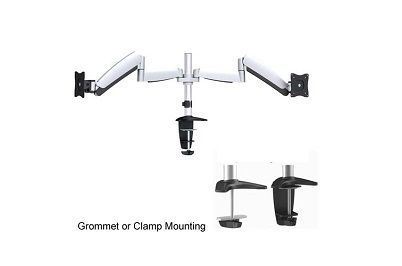

The stand can be mounted on the edge of the desk using a clamp or any place on the desk by making a hole.
Features:
Fit for most 13 inch - 27 inch flat TV/monitors
Tilt: -40° ~ +90°
Swivel: 180°
Rotate 360°
VESA: 75x75, 100x100
Max. Arm reach: 25 inch (500mm)
Clamping height: 0.4 ~ 3.5 inch (10-90mm)
Clamp mount for edge or grommet installation
Max monitor weight: 19.8lbs per mount
All mounting hardware included
Please note:The compatible TV sizes listed here are a guide. It does not guarantee compatibility. To fully determine if your TV is compatible with this mount, check the VESA pattern and the weight on your TV.
A: When choosing a bracket compatibility is determined by weight and VESA pattern. The weight of your TV must not exceed the maximum capacity the bracket can hold. Secondly your TV must conform to the proper VESA (see below for an explanation of VESA) pattern. The VESA pattern determines the placing of the screw holes on the TV. Your TV instruction manual should provide which patterns your TV supports.
Although we give a recommended size that does not guarantee compatibility. We provide them as general guidelines.
Q: What is a VESA mounting pattern?
A: VESA mounting pattern technically called VESA Mounting Interface Standard (MIS) is the industry standard for mounting flat panel monitors and TVs. It is widely adopted in the industry and allows for easy compatibility between mounts and TVs.
The smallest VESA configuration is 50mm x 50mm. This means their are four screw holes in a square pattern 50mm apart.
The largest VESA configuration is 800mm x 400mm. The screws are in a rectangular pattern 800mm apart on the long edge and 400mm on the short edge.
Check your instruction manual for the VESA pattern your TV supports.
