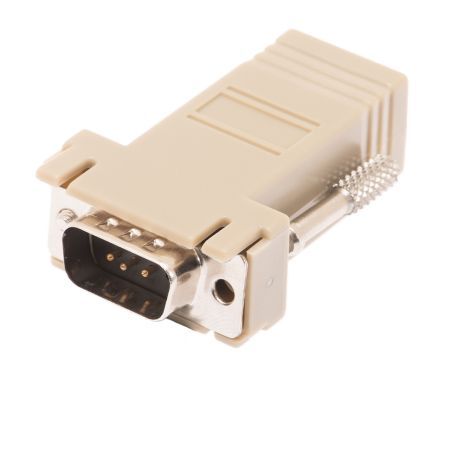

DB9 Male to RJ12 Female Modular Adapter Kit - 6 Conductor
SKU
15-109-154
6 Conductor | Plastic Body | Gold-Plated Contacts | Thumb Screws | Create Custom Pinout
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $4.68 $4.68 | $3.88 | $3.45 | $3.07 | $2.77 |
Quantity Available: 881
This DB9 Male to RJ12 Female Adapter Kit is used to change the connector type of a DB9 cable to a modular connector. All you need to do is plug this adapter in. It allows you to use a variety of pin-out configurations, allowing for extreme versatility. These kits are shipped unassembled and require assembly based on their application to be functional. These can be assembled on your end by a competent technician.
Features:
- Connector 1: DB9 Male
- Connector 2: RJ12 Female
- 6 Conductor
- Plastic Body
- Gold-Plated Contacts
- Thumb Screws
RJ12 Color Code
- Pin 1 – Blue
- Pin 2 – Yellow
- Pin 3 – Green
- Pin 4 – Red
- Pin 5 – Black
- Pin 6 – White
Write Your Own Review
What are D-Sub connectors?
D-Sub connectors are named after their D-shaped form. They come in a variety of pin numbers to fit your computer application needs.
Are D-Sub and Serial Connectors the same?
Yes they are the same thing.
| Features & Specs | ||
|---|---|---|
| Connector 1 | Type of Connector on side 1? | DB9 Male |
| Connector 2 | Type of connector on side 2? | RJ12 Female |
| Conductors | The number of conductors on modular side of connector? | 6 |
| Housing | What the connector housing is made with? | Plastic |
| Form Factor | The Form Factor of the Connector? | Straight |
