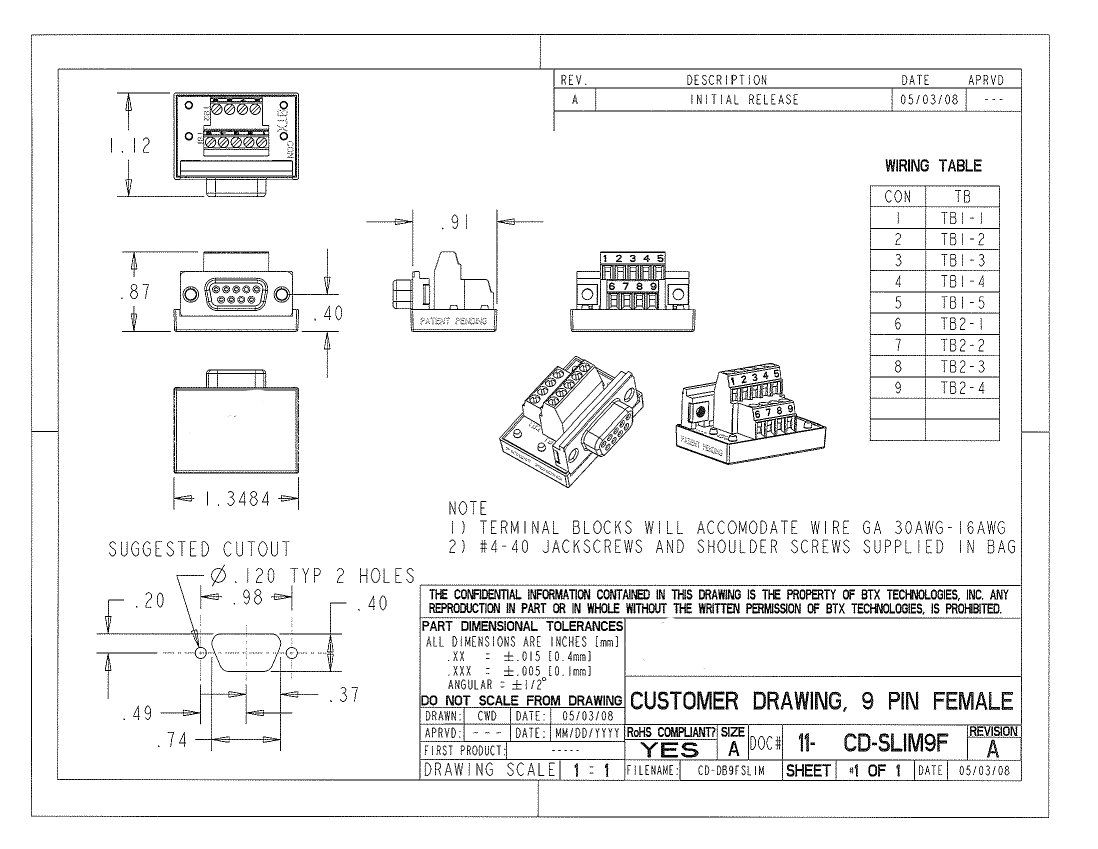

DB9 Female Terminal Block Panel Mount Connector
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $20.22 | $18.95 | $17.67 | $16.39 | $15.12 |
These DB9 Female Terminal Block Panel Mount Connectors are used to terminate any cable in the field with a custom pinout in a fast and easy way. This solderless connector fits into installs where depth is a problem, and it provides a reliable connection for all applications with no special tools. These connectors are made with high-quality materials to ensure durability and a long life.
Feature:
- DB9 Female
- 9 Pins
- Easy Termination with No Soldering or Crimping
- Quick and Simple Wiring
- Gold-Plated Contacts
- Tinned Copper Shell
- Nickel Thermoplastic Insulator
What are D-Sub connectors?
D-Sub connectors are named after their D-shaped form. They come in a variety of pin numbers to fit your computer application needs.
Are D-Sub and Serial Connectors the same?
Yes they are the same thing.
What are the advantages of using a terminal block?
Terminal blocks are great when you need a fast and easy termination that can be done in the field. In addition to easy termination terminal blocks are used to create your own custom pinout. They require no special tools other than a screw driver.
| Signal Name and Abbreviation | DB25 Pin | DB9 Pin | Direction | DB9 Pin | DB25 Pin | Signal Name Abbreviation | |
|---|---|---|---|---|---|---|---|
| Frame Ground | FG | 1 | – | – | 1 | FG | |
| Transmitted Data | TxD | 2 | 3 | → | 2 | 3 | RxD |
| Received Data | RxD | 3 | 2 | ← | 3 | 2 | TxD |
| Request to Send | RTS | 4 | 7 | → | 8 | 5 | CTS |
| Clear to send | CTS | 5 | 8 | ← | 7 | 4 | RTS |
| Signal Ground | SG | 7 | 5 | 5 | 7 | SG | |
| Data Set Ready | DSR | 6 | 6 | ← | 4 | 20 | DTR |
| Data Carrier Detect | DCD | 8 | 1 | ||||
| Data Terminal Ready | DTR | 20 | 4 | → | 1 | 8 | DCD |
| 6 | 6 | DSR | |||||
| Signal Name | DB25 Pin | DB9 Pin | Direction |
|---|---|---|---|
| Protective Ground | 1 | – | |
| Transmitted Data | 2 | 3 | → |
| Received Data | 3 | 2 | ← |
| Request to Send | 4 | 7 | → |
| Clear to Send | 5 | 8 | ← |
| Data Set Ready | 6 | 6 | ← |
| Signal Ground | 7 | 5 | |
| Data Carrier Dectect | 8 | 1 | ← |
| Data Terminal Ready | 20 | 4 | → |
| Ring Indicator | 22 | 9 | ← |
| DB37 Pin | DB25 Pin | DB15 Pin | DB9 Pin |
|---|---|---|---|
| 1-1 | 1-1 | 1-1 | 1-1 |
| 2-2 | 2-2 | 2-2 | 2-2 |
| 3-3 | 3-3 | 3-3 | 3-3 |
| 4-4 | 4-4 | 4-4 | 4-4 |
| 5-5 | 5-5 | 5-5 | 5-5 |
| 6-6 | 6-6 | 6-6 | 6-6 |
| 7-7 | 7-7 | 7-7 | 7-7 |
| 8-8 | 8-8 | 8-8 | 8-8 |
| 9-9 | 9-9 | 9-9 | 9-9 |
| 10-10 | 10-10 | 10-10 | |
| 11-11 | 11-11 | 11-11 | |
| 12-12 | 12-12 | 12-12 | |
| 13-13 | 13-13 | 13-13 | |
| 14-14 | 14-14 | 14-14 | |
| 15-15 | 15-15 | 15-15 | |
| 16-16 | 16-16 | ||
| 17-17 | 17-17 | ||
| 18-18 | 18-18 | ||
| 19-19 | 19-19 | ||
| 20-20 | 20-20 | ||
| 21-21 | 21-21 | ||
| 22-22 | 22-22 | ||
| 23-23 | 23-23 | ||
| 24-24 | 24-24 | ||
| 25-25 | 25-25 | ||
| 26-26 | |||
| 27-27 | |||
| 28-28 | |||
| 29-29 | |||
| 30-30 | |||
| 31-31 | |||
| 32-32 | |||
| 33-33 | |||
| 34-34 | |||
| 35-35 | |||
| 36-36 | |||
| 37-37 | |||
