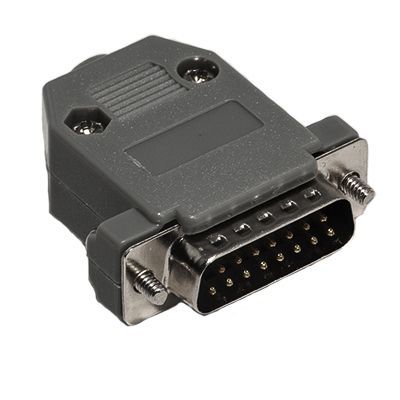

DB15 Male Solder Connector Kit - Plastic
|Quantity Discount Pricing|
These DB15 Male Solder Connector Kits are used to change the connection type of a cable. They can easily be soldered to a custom length cable creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. The kit includes the solder connector, a plastic hood, and all hardware.
- DB15 Male
- Solder Type
- 15 Pins
- Gold-Plated Contacts
- Tinned Copper Shell
- Nickel Thermoplastic Insulator
- Includes: Connector, Plastic Hood, & All Hardware
What are D-Sub connectors?
D-Sub connectors are named after their D-shaped form. They come in a variety of pin numbers to fit your computer application needs.
Are D-Sub and Serial Connectors the same?
Yes they are the same thing.
What are the advantages of using a solder connector?
When using solder connectors it is a more permanent solution as compared to crimp connectors. You do not have to worry about pins being pulled out on solder connectors which can happen in crimp connectors. For this reason soldering can be more reliable.
What are the advantages of using a crimp connector?
Using crimp connectors is often just as reliable as solder connectors but they takes less time to install. Installation is as simple as squeezing a crimping tool to secure the connection.
What are the benefits of using a plastic metalized plastic or metal hood for my connector?
Plastic hoods are the most economical option when constructing D-Sub connectors. Metalized plastic hoods provides shielded against EMI/RFI interference while still being an economical option. Metal hoods provide durability as well as shielding against EMI/RFI interference.
What all do I need to assemble a DB15 Connector?
You only need a few things to make a DB15 Connector. There are two types you can choose from; solder type or crimp type.
Solder Type: To make a solder type connector you will need either a male or female solder type connector a DB15 hood (metal or plastic depending on our preference) a DB15 grommet and a soldering iron.
Crimp Type: To make a crimp type connector you will need either a male or female crimp type connector D-Sub crimp pins to match the gender of your connector a DB15 hood (metal or plastic depending on our preference) a DB15 grommet and a D-Sub crimp tool.
|Signal Name and Abbreviation||DB25 Pin||DB9 Pin||Direction||DB9 Pin||DB25 Pin||Signal Name Abbreviation|
|Request to Send||RTS||4||7||→||8||5||CTS|
|Clear to send||CTS||5||8||←||7||4||RTS|
|Data Set Ready||DSR||6||6||←||4||20||DTR|
|Data Carrier Detect||DCD||8||1|
|Data Terminal Ready||DTR||20||4||→||1||8||DCD|
|Signal Name||DB25 Pin||DB9 Pin||Direction|
|Request to Send||4||7||→|
|Clear to Send||5||8||←|
|Data Set Ready||6||6||←|
|Data Carrier Dectect||8||1||←|
|Data Terminal Ready||20||4||→|
|DB37 Pin||DB25 Pin||DB15 Pin||DB9 Pin|
|Features & Specs|
|Connector||Type of Connector?||DB15|
|Gender||The gender of this connector?||Male|
|Style||Type termination style of this connector?||Solder|
|Contact Material||What the contacts are made with?||Gold-Plated|
|Housing||What the connector housing is made with?||Plastic|
|Form Factor||The Form Factor of the Connector?||Straight|
