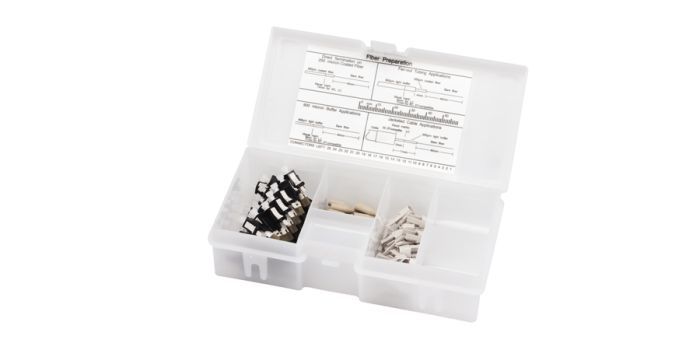

Corning UniCam High-Performance Connector - SC, Multimode (OM3/OM4) - 25 In Organizer Pack - Black Housing - Aqua Boot
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $745.00 | $735.00 | $725.00 | $715.00 | $705.00 |
Quantity Available: 0
Corning UniCam High-Performance Connector - SC, Multimode (OM3/OM4) - 25 In Organizer Pack - Black Housing - Aqua Boot
Corning Cable Systems UniCam High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. The high-precision mechanical splice technology enables fiber optic networks to be installed quickly and cost effectively.
Features:
- Fiber Category: 50 µm MM (OM3/OM4 compatible)
- Keyed: No
- Product Type (FOJP): Field-Installable Connectors
- Boot Color: Aqua
- Connector Ferrule Material: Ceramic
- Connector Housing Color: Black
- Connector Housing Material: Composite
- Design - Connector Type: SC
- Nominal Fiber Outer Diameter: 125 µm
- Insertion Loss, Max_ (Connector): 0.5 dB
- Insertion Loss, Typical (Connector): 0.1 dB
What does duplex mean?
Duplex means that there is a set of two connectors on each side of the cable. These are duplex cables.
What are the differences between the fiber connectors?
ST- Uses a push and turn to lock system
SC- Has a molded plug casing with push and pull locking system
LC- Small form factor that resembles an SC connector
MTRJ- Small form factor with a square plastic casing
What is the difference between 50/125 and 62.5/125 fiber?
50/125 can be run further with less loss than 62.5/125 fiber.
What is the the difference between UPC fiber connectors and APC fiber connectors?
UPC stands for Ultra Physical Contact and APC stands for Angled Physical Contact. UPC connectors are finely polished on the ends of the fibers in order to decrease insertion loss and increase return loss (the higher the return loss the better the connection). UPC connectors have a return loss of more than 50dBs. The APC connectors were made to decrease insertion loss and increase the return loss even more. APC connectors have a return loss of more than 60dB. The end face of the APC connector fiber is polished at an 8 degree angle which prevents back reflections that degrade the performance of your system.
