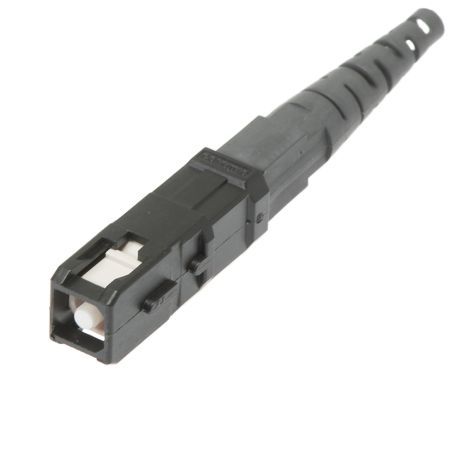

Corning Fiber Connector - SC, Multimode (OM2) - Single Pack - Black Housing - Black Boot
This product has been discontinued
Corning Fiber Connector - SC - Multimode (OM2) - Single Pack - Black Housing - Black Boot
Corning Cable Systems Anaerobic-Cure Connectors offer optical performance in a fast, easy field-termination solution designed for fiber-to-the-workstation applications for single-mode and multimode connections. This connector combines the quick-cure convenience of anaerobic adhesive with the performance of epoxy-and-polish connectors. Ideal for enterprise networks and any installations requiring field-installed connectors, the anaerobic-cure technology enables fiber optic networks to be installed cost effectively with minimal tools.Installation of the connector can be accomplished in minutes with the anaerobic adhesive two-part epoxy process. The adhesive is first injected into the connector ferrule and then the fiber is dipped into the primer and inserted into the connector. Curing takes only one minute without the use of lamps or ovens. With the hand-polish process, an average insertion loss of 0.2 dB is achieved.
Features:
- Fiber Category: 50 µm MM (OM2)
- Keyed: No
- Product Type (FOJP): Field-Installable Connectors
- Technology: Field Polish (anaerobic)
- Boot Color: Black
- Connector Ferrule Material: Ceramic
- Connector Housing Color: Black
- Connector Housing Material: Composite
- Design - Connector Type: SC
- Temperature Cycling: = 0.3 dB IL, -40 to +75C, 21 cycles
- Insertion Loss, Max_ (Connector): = 0.75 dB
- Insertion Loss, Typical (Connector): = 0.2 dB
- Reflectance (Connector): = -26 dB
What does duplex mean?
Duplex means that there is a set of two connectors on each side of the cable. These are duplex cables.
What are the differences between the fiber connectors?
ST- Uses a push and turn to lock system
SC- Has a molded plug casing with push and pull locking system
LC- Small form factor that resembles an SC connector
MTRJ- Small form factor with a square plastic casing
What is the difference between 50/125 and 62.5/125 fiber?
50/125 can be run further with less loss than 62.5/125 fiber.
What is the the difference between UPC fiber connectors and APC fiber connectors?
UPC stands for Ultra Physical Contact and APC stands for Angled Physical Contact. UPC connectors are finely polished on the ends of the fibers in order to decrease insertion loss and increase return loss (the higher the return loss the better the connection). UPC connectors have a return loss of more than 50dBs. The APC connectors were made to decrease insertion loss and increase the return loss even more. APC connectors have a return loss of more than 60dB. The end face of the APC connector fiber is polished at an 8 degree angle which prevents back reflections that degrade the performance of your system.
