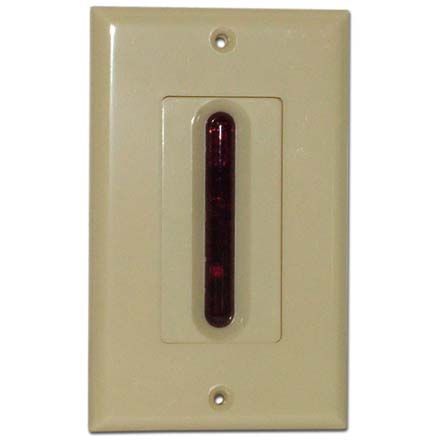

Choice Select IR Target in Decora Style Wall Plate – Ivory
This product has been discontinued
Choice Select Infrared Remote Target in Decora Style Wall Plate – Ivory
The Choice Select IR Target in Decora Style Wall Plate is designed to be connected to the input terminals of any Choice Slecet IR Distribution Hub. Simply connect the IR target to the input terminals of the Distribution Hub. Mount in a single-gang junction box or low-voltage box. This unit may be connected in parallel to up to three other IR targets when connected to the distribution hub.
Features:
- Infrared frequency bandwidth: 38K + 2K Hz
- Control range: 80 feet indoors, 15 to 20 feet in direct sunlight
- Reception angle: + or - 45 degree off axis
- Decora-style Wall plate
- LED indicator for IR response
- Compatible with most standard remote controls
- Color: Ivory
Product Questions
Q: What are the different parts of an IR System?
Infrared Target
This device picks up the infrared signal from your remote control just like a TV or VCR. It encodes the infrared signal into a signal suitable for transmission. Receivers must be located in the room you wish to use the remote control. The wire from the receiver to the connecting block needs at least three available conductors and can be several hundred feet long. Cat5/Cat6 wire work fine.
Hub
This is simply a place for all the parts to plug in or connect to. Connecting blocks are usually classified based on the number of ports. All connecting blocks can support many IR receivers wired in parallel. Connecting blocks are usually located near the equipment that is to be controlled along with the power supply and emitters.
Infrared Emitters
IR Emitters generally 'stick' onto the front of the device you want to control. You with need one emitter for each device. 'Dual' emitters have two emitters and one plug so they only take up one jack of the connecting block. All emitters come with long cords and double-stick tape.
Q: My remote is working sporadically what could be the problem?
A: The most likely problem is you have a signal band IR target and your remote is a dual band remote. You will need to upgrade your current IR Target with a Dual Band Target.
Q: Why do I need a Plasma Proof Target?
A: Some plasma and LCD TVs emit broad-spectrum infrared noise. This can cause issues with transmitting the proper IR signals back to the hub.
