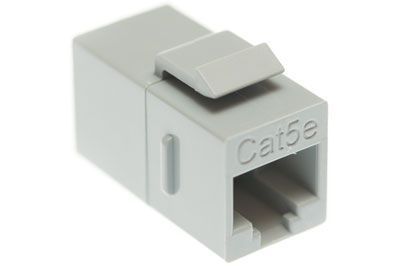

Cat5e RJ45 Inline Keystone Coupler

SKU
15-500-160 XX
8P8C | Straight Pinout | Cat5e Rated | Gold-Plated Contacts | Connect Two Patch Cables

Inline couplers avoid the need for rear termination and allow two patch cables to be connected directly—no tools required. This keystone jack fits any standard or high-density keystone wall plate, patch panel, or surface mount box.

Features:

  • Front Connector: RJ45
  • Rear Connector: RJ45
  • Color: Gray
  • Pinout: Straight
  • Meets EIA/TIA Cat5e Standard
Write Your Own Review
You're reviewing:Cat5e RJ45 Inline Keystone Coupler
Your Rating


































































TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks
IDCT568AT568B
TerminalsPairWire ColorPairWire Color
PIN51White/Blue1White/Blue
PIN4BlueBlue
PIN13White/Green2White/Orange
PIN2GreenOrange
PIN32White/Orange3White/Green
PIN6OrangeGreen
PIN74White/Brown4White/Brown
PIN8BrownBrown
