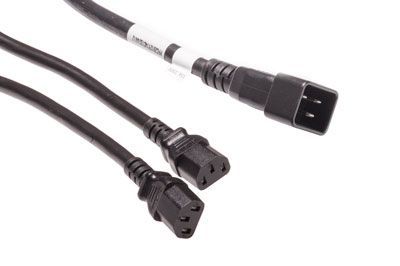

ECore C20 to C13 Splitter Power Cord - 15 Amp
Splitter Power Cord - 15 Amp C20 to Dual C13 Cable
This C20 to C13 Splitter Power Cord makes it easy to connect two devices to one power source. When using a splitter, you can save space by eliminating those extra bulky cords, and keep your power strips or wall plugs free of unnecessary clutter. It has one C20 connector and two C13 connectors. This splitter is ideal for compact workplaces and home offices where space is limited. It is made of high quality materials to ensure maximum durability and a long life. These are the standard power cords used for many devices, including monitors, computers, printers, scanners, TVs, and sound systems.
Features:

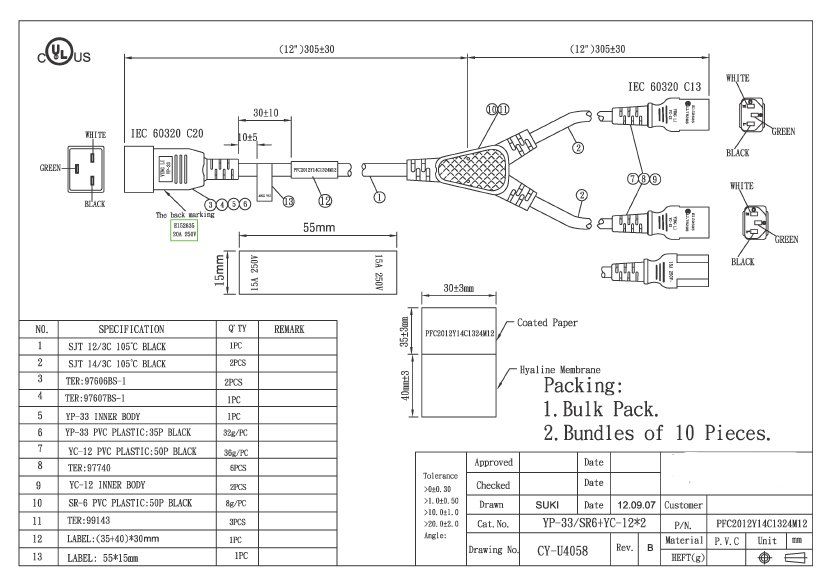

- Connector 1 - (1) C20 Male
- Connector 2 - (2) C13 Female
- 12 Inch Legs
- SJT Jacket
- Black, White and Green North America Conductor Color Code
- Certification: UL listed
- Color - Black
Q: What is the difference between a SVT jacket and a SJT jacket?
A: SVT jackets are thinner and more flexible and only come in 17 or 18 AWG sizes. SJT cords have twice as much insulation making them less flexible. They can be produced in gauges sizes from 10 to 18 AWG.
Q: I'm not sure which power cable I need. Can you help?
A: The different power connectors can be confusing. We have a chart on the resources tab to help you determine which connector you need.
Q: Is a 10 amp cable sufficient for powering my devices?
A: The 10 amp version is the most cost efficient cable. It will handle most computer applications because PCs draw very low amperages.
IEC connectors are the standard connectors as recognized by the International Electrotechical Commission. They are non-locking connectors rated up to 250 volts. The IEC standard uses a numerical approach to distinguish which is the outlet and which is the inlet. All odd numbers (C5 C13 etc.) are the outlets which plug into the even number inlet. The odd number connectors mate with the even number directly after them. For example a C13 plugs into a C14 but will not plug into a C12.
| Outlet | Inlet | Picture | Grounded | Max Amperage | Notes |
|---|---|---|---|---|---|
| C5 | C6 |  |
Yes | 2.5 | Laptops, Apple, iMac sometimes referred to as "Mickey Mouse" connector |
| C7 | C8 |  |
No | 2.5 | Non-Polarized version. Very common plug found on audio video equipment laptop power supplies. |
| C7 | C8 |  |
No | 2.5 | Polarized version. Very common plug found on audio video equipment laptop power supplies |
| C13 | C14 |  |
Yes | 10 or 15 | Very common found on most computers and peripherals |
| C15 | C16 |  |
Yes | 10 or 15 | Used for small appliances that get very hot. |
| C19 | C20 |  |
Yes | 16 or 20 | 2005 PowerMac Cisco, Power Supplies Ciscoo, Chassis Dell workstations. |
| Receptacle | Plug | Picture | Grounded | Max Amperages | Notes |
|---|---|---|---|---|---|
| 1-15R | 1-15P |  |
No | 15 | Typical two prong connector found on lamps, radio clocks, and other small electronics |
| 5-15R | 5-15P |  |
Yes | 15 | Typical three prong connector found in modern homes. It is also found on countless electronic devices. |
| L5-15R | L5-15P |  |
Yes | 15 | Locking version of the 5-15 |
| 5-20R | 5-20P |  |
Yes | 20 | 20 amp connector. 5-20 recepticles will accept a 5-15 plug. |
| L5-20R | L5-20P |  |
Yes | 20 | Locking version of the 5-20 |
|
240VAC Power Connectors |
|||||
| 6-15R | 6-20P |  |
Yes | 15 | Wired hot - hot - ground. |
| 6-20R | 6-20P |  |
Yes | 20 | Wired hot - hot - ground. |
