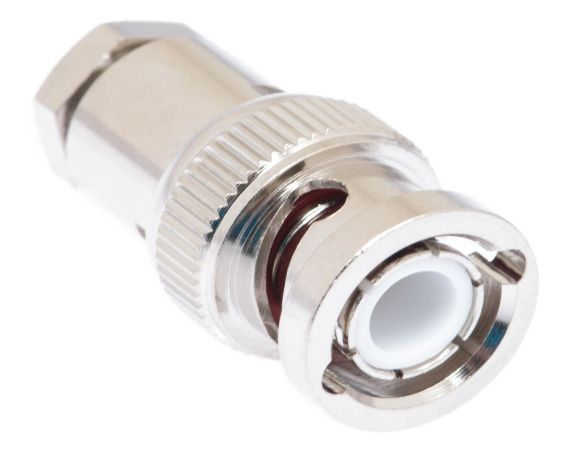

A BNC connector is a locking RF connector that is used on many types of coaxial cable. BNC connectors are commonly used on test equipment, avionics, analog and serial digital interfaces as well as video signals. BNC connectors are available in 50 and 75 ohm versions.
Features:
Fits micro RG8
Male
50 ohm
Crimp style
2 piece design (connector and ferrule)
Nickel plated connector, gold plated pin
Building Cables?
Let ShowMeCables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.
A: BNC stands for Bayonet Neill-Concelman. They are named after the bayonet locking mechanism and their inventors.
Q: What are BNC connectors commonly used for?
A: BNC connections are typically used on RF video and ethernet applications.
Q: How can I tell the difference between a 75 ohm and 50 ohm BNC connector?
A: On a 50 ohm connector the center pin is surrounded by a white dialectric. On a 75 ohm BNC connector is surrounded by air (no dialectric)
Q: Can a 50 ohm and 75 ohm BNC connector be connected together?
A: 50 ohm and 75 ohm BNC connectors will mate with each other. At frequencies under 10 MHz the impedance mismatch will not have any affect. If you are above 10 MHz the chances of signal distortion becomes more significant.
