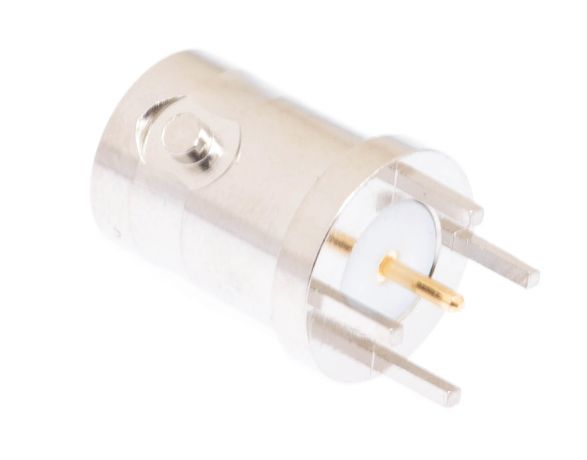

A BNC connector is a locking RF connector that is used on many types of coaxial cable. BNC connectors are commonly used on test equipment, avionics, analog and serial digital interfaces as well as video signals. BNC connectors are available in 50 and 75 ohm versions.

Features:

Female
50 ohm
PCB mount
Nickel plated connector, gold plated pin

Building Cables?

Let Triangle Cables do it for you. Our custom cables are professionally built, have quick turn-arounds and there is no minimum order requirement. Design your cable online, or contact our sales department for a quote.

Reviews

Product Questions

See all

No questions yet. Be the first to ask the question!

Frequent Q&A

Q: What is a BNC Connector?

A: BNC connectors are miniature quick connect/disconnect radio frequency (RF) connectors used for coaxial cable that work with video and ethernet applications.

Q: What does it mean when a connector says it is 50 ohm or 75 ohm?

A: BNC connectors are most commonly made in 50 and 75 ohm versions. Video and DS3 Telco central office applications primarily use 75 ohm connectors, while 50 ohm connectors are used for data.

You can easily tell the difference between the two by looking for the dialectric. The 50 ohm connector features a white dialectric surrounding the center pin, while the 75 ohm BNC connector is surrounded by air (no dialectric).

50 ohm and 75 ohm BNC connectors will mate with each other. At frequencies under 10 MHz the impedance mismatch will not have any affect. If you are above 10 MHz the chances of signal distortion become more significant.

Specification

Features & Specs
Cable Type	The type of cable this connector fits?	RG58
Form factor	The form factor of this connector?	Straight
Style	The style of this connector?	Chassis Mount
Impedance	The impedance of this connector?	50 Ohm
Gender	The gender of this connector?	Female
Material	The material this connector is made from?	Brass with nickel plating
