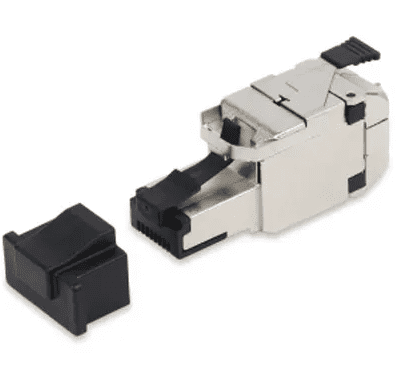

Belden REVConnect 10GX Field Mount Plug - UTP - Metal - Black
Belden presents REVConnect - a complete connectivity solution for 10GX. The REVConnect system is designed to make deployment easier and put hours back in your day. Increasing the speed of your installation will allow you to complete more jobs and increase your overall revenue. The REVConnect system provides maximum reliability and ease of install for the contractor.
Termination Front Connection Durability: 750 cycles
Termination Rear Connection: Mated Connection
Termination Rear Connection Durability: 20 cycles
Cable/Connector Retention: 15 lbs.
Connector/Hardware Retention: 20 lbs
Plug/Connector Retention: 11.250 lbs
REVConnect Cores Not Included
Standards:
UL Rating: UL94V-0
Data Category: Category 5e
Telecommunications Standards: Category 5e - TIA 568.C.2, Category 5 - ISO/IEC 11801:2002 Ed.2
IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over
HDBaseTTM (up to 100W)
Other Specification: UL 1863, IEC 60603-7, FCC part 68-F
