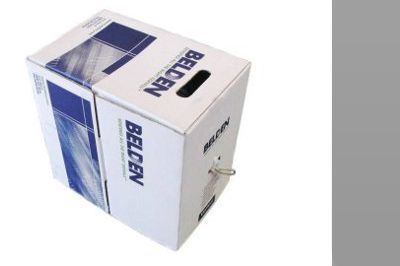

Belden 9841 - 1 Pair 24 AWG Shielded Computer Cable for EIA RS-485 1000 FT

Belden 9841 is a low capacitance serial cable used in EIA RS-485 applications. This cable has a nominal impedence of 120 Ohm and comes with 1 pair of 24 AWG stranded tinned copper conductors. This cable is protected from RFI and EMI interference by a 100% Aluminum foil-Polyester tape Beldfoil® shield, plus a 90% tinned copper braid. The jacket is CM rated PVC.

Features:

• 120 Ohm
• 1 Pair/24 AWG
• Stranded Tinned Copper Conductors
• 24 AWG Drain Wire
• 100% Aluminum Foil-Polyester Tape Beldfoil® Shield
• 90% Tinned Copper Braided Shield
• PO Insulation
• CM Rated PVC Jacket
• UL Listed
• RoHS Certified
• Sold per ft.
• Max Continuous Length: 1000 FT

Please note: All products that are bought per foot are non-returnable.

Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
