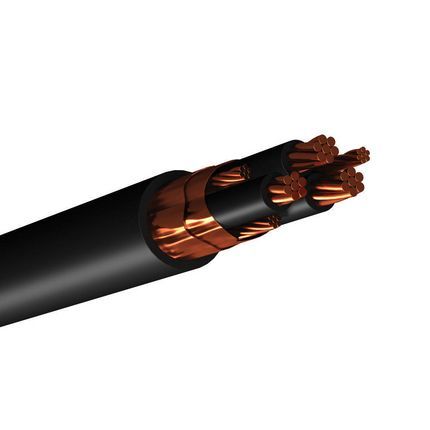

Belden 29528C - 1 AWG - 3 Conductor - 600V - Stranded Conductor - Shielded - Variable Frequency Drive (VFD) Cable
Variable Frequency Drive or VFD Cables provide more precise motor control and improved power efficiency for AC motors than traditional DC motor cables.
Due to their robust manufacturing, VFD cables they can reliably carry power from AC drive system to motors, extend motor life, reduce corona discharge, reduce magnitude of standing waves, increase efficiency of power transfer, reliably handle high voltage spikes, and they are sunlight and oil resistant. VFD cables eliminate downtime due to cable failure.
VFD cables are used in a variety of industries including industrial motion control, commercial flow and pumping, and extrusion applications.
ShowMeCables carries a wide variety of VFD Cables in different lengths, sizes, routing, and shielding types.
The VFD cables are capable of working in harsh conditions and environments which include high voltage spikes, high noise, and high interference. With superior shielded VFD cables from ShowMeCables you can effectively prevent interference from frequencies from VFD cables.
Features
- VFD (Variable Frequency Drive) Cable
- Stranded
- Bare Copper
- 600V
- Shielded
- (3) 1 AWG Ground Wires
- Dual Copper Tape Shields
- UV Resistant PVC Jacket
- Oil Resistant Jacket
- ICEA Method 4 Wiring (Black With Numbers)
- RoHS Compliant
- UL Listed
Applications
- Industrial Motion Control
- Commercial Flow/Pumping
- Extrusion
Cable Type | AWG | Counductor Stranding | Nominal OD | Maximum Pull Tension | Minimum Bend Radius |
---|---|---|---|---|---|
Belden 29520C | 16 AWG | 7 x 24 | 0.39 in | 107 lbs | 4.0 in |
Belden 29521C | 14 AWG | 7 x 22 | 0.43 in | 162 lbs | 4.3 in |
Belden 29522C | 12 AWG | 7 x 20 | 0.46 in | 258 lbs | 4.6 in |
Belden 29523C | 10 AWG | 7 x 18 | 0.51 in | 444 lbs | 5.1 in |
Belden 29524C | 8 AWG | 7 x 16 | 0.65 in | 576 lbs | 6.5 in |
Belden 29525C | 6 AWG | 7 x 14 | 0.72 in | 915 lbs | 7.3 in |
Belden 29526C | 4 AWG | 7 x 12 | 0.83 in | 1450 lbs | 8.3 in |
Belden 29527C | 2 AWG | 7 x 10 | 0.99 in | 2300 lbs | 10.0 in |
Belden 29528C | 1 AWG | 19 x 14 | 1.13 in | 2650 lbs | 11.5 in |
Belden 29529C | 1/0 AWG | 19 x 13 | 1.21 in | 3537 lbs | 12.3 in |
Belden 29530C | 2/0 AWG | 19 x 12 | 1.31 in | 4200 lbs | 13.3 in |
Belden 29531C | 3/0 AWG | 19 x 11 | 1.42 in | 5025 lbs | 14.3 in |
Belden 29532C | 4/0 AWG | 19 x 10 | 1.54 in | 6670 lbs | 15.5 in |
