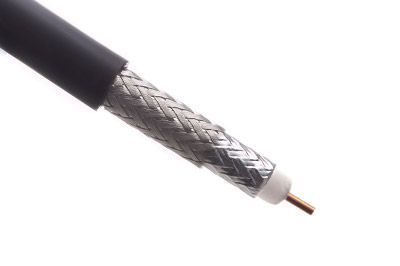

Times Microwave LMR-400-FR Fire Retardant is designed for flexibility, low loss, RF shielding, and weatherability. LMR-400's cable design enables the tightest bend radius for any cable of similar size and performance. The cable has the lowest loss of any comparable cable. With 90 dB of RF shielding this cable is suitable for applications with a large amount of EMI. LMR-400 can be installed both in and outdoors. Use Times Microwave brand LMR-400 cable for any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable. LMR-400 is a drop-in replacement for RG-8.
Features:
Priced Per Foot
Cable Type: LMR-400-FR
Impedance: 50 ohm
Center Conductor: Bare Copper Covered Aluminum (BCCAI)
Jacket: Fire Retardant Polyethylene (FRPE) Riser Rated
Outer Diameter: .405 inch
Indoor/Outdoor Rated
Drop-in replacement for RG-8
Attenuation @ 900 MHz/100 ft: 3.9dB/100ft
Attenuation @ 2.4 GHz/100 ft: 6.65dB/100ft
Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable
Waterproof compound in and around the foil/braid
Max Continuous Length: 1000 FT
LMR® is a Registered Trademark of Times Microwave Systems.
Please note: This product is cut to the length and is not returnable.
Any amount of cable you order above the maximum continuous length of 1000 FT will be sent in separate pieces.
