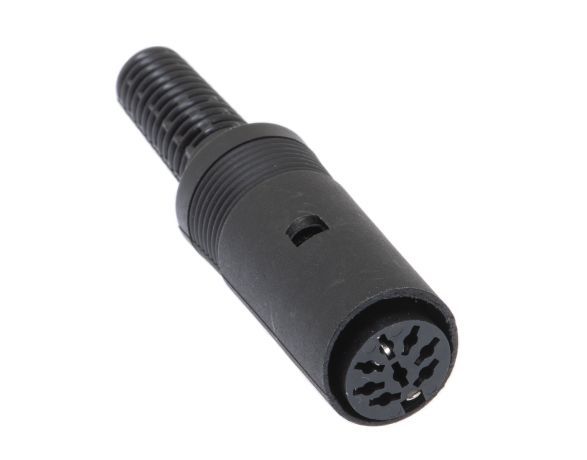

The 7 Pin DIN Female Solder Connector is economic and lightweight. The jack comes in four parts and can be easily disassembled for access to the solder cups. The 7 Pin DIN Female Connector accepts up to 22 AWG wire. The solder cups are easy to work with and the eyes are easy to thread. The 7 Pin DIN Female Connector is designed with molded strain relief and accepts cables up to 7mm.
Features:
7 Pin DIN Female
Plastic
Lead Type: Solder Cups
Molded Strain Relief
Accepts 22 AWG Wire
Accepts Cable up to 7mm
Please Note:
Connector uses an 8 pin DIN housing, while only 7 conductors are present
