7 Pin DIN Female Solder Connector - Metal
SKU
1722
7 Pins | Solder Cups | Metal | Molded Strain Relief | 22 AWG Wire | 7mm Cable
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-49 | 50-99 | 100+ |
| $8.59 | $7.69 | $7.49 | $7.39 | $7.39 |

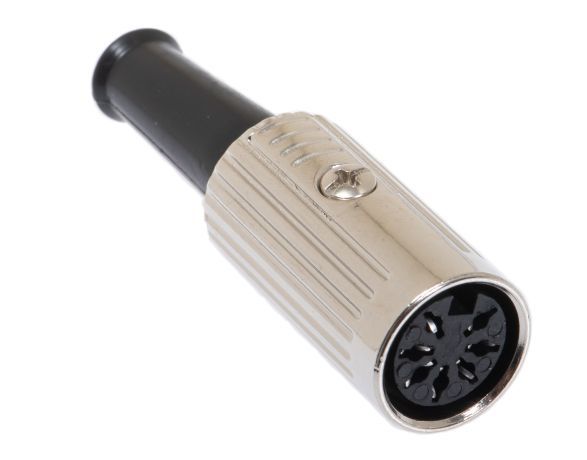

The 7 Pin DIN Female Solder Connector is an economic and lightweight metal connector. The metal construction provides a sturdier connector. The jack comes in four parts and can be easily disassembled for access to the solder cups. The 7 Pin DIN Female Connector accepts up to 22 AWG wire. The solder cups are easy to work with and the eyes are easy to thread. The 7 Pin DIN Female Connector is designed with molded strain relief and accepts cables up to 7mm.
Features:
- 7 Pin DIN Female
- Metal
- Lead Type: Solder Cups
- Molded Strain Relief
- Accepts 22 AWG Wire
- Accepts Cable up to 7mm
Write Your Own Review
Product Questions
| Features & Specs | ||
|---|---|---|
| Pin | The number of pins? | 7 |
| Configuration | The configuration of the pins? | 270° |
| Material | The material of the connector? | Metal |
| Gender | The gender of the connector? | Female |
