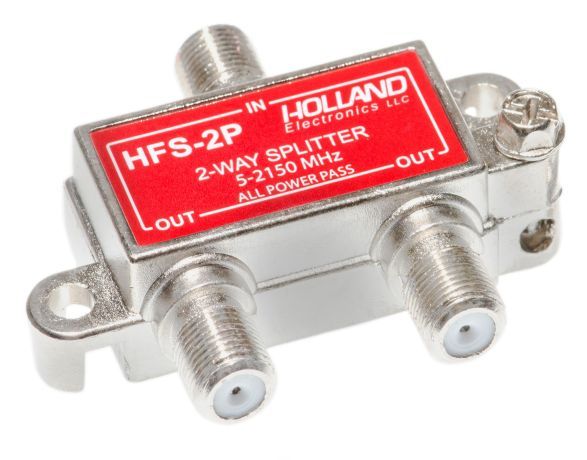

2-Way Coax Splitter - 5 to 2150 Mhz - All Ports Power Passive | HFS-2P
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-4 | 5-9 | 10-24 | 25-49 | 50+ |
| $2.56 | $2.30 | $2.16 | $2.04 | $1.90 |
2-Way Coax Splitter - 5 to 2150 Mhz - All Ports Power Passive | HFS-2P
Coax splitters are used to split a CATV or satellite signal so that it can be used for more than one device. They are a simple plug and play device that can be installed in minutes. This 2-way splitter supports frequencies from 5 to 2150 MHz. The power passing ports allows power to pass through the splitter to power in-line amplifiers, pre-amplifiers, and satellite LNBs. Use this 2 way coaxial cable splitter for any residential or commercial cable or satellite installation.
Features:
- 2-Way
- All Ports F-Type Female
- All Ports Power Passive
- Supports 5 to 2150 MHz
- 90dB min RFI Shielding
- Grounding Block
- Antenna, CATV, and Satellite compatible.
Proposition 65
WARNING: This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
RoHS*
Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment in the European Union. It stands for Restriction of Hazardous Substances Directive.
REACH*
REACH, a European Union regulation addresses the production and use of chemical substances and their potential impacts on both human health and the environment. It stands for Registration, Evaluation, Authorisation, and Restriction of chemicals.
WEEE*
The WEEE Directive set collection, recycling and recovery targets for all types of electrical goods in the European community. It stands for Wate Electrical and Electronic Equipment Directive.
* The following information is for information purposes only. It does not guarantee that the product adheres to the following standards. Please check the product description for specific certifications.
Q: What is a coax cable splitter?
A: A coax cable splitter is a device with one input and two or more outputs which splits the signal into two or more signals each which has a lower signal strength than the original signal.
Q: Should I choose a splitter that has more splits than I need?
A: No if you have an 8 way splitter you are splitting the signal 8 times. This means you will only get 1/8 of the signal out of each port. It does not matter if the line is connected or the device is on. Our recommendation is to buy the splitter that matches your application.
Q: What frequency splitter do I need?
A: For Digital Cable TV or Cable Internet a standard 900 MHz or higher splitter will work fine. For satellite use a 2000 MHz splitter or higher.
Q: When would I want to block DC power?
A: Many devices aren't designed to take in DC power so you would want to use a DC power blocking splitter to make sure that your equipment doesn't get fried. They stop the DC voltage from getting through thus protecting your antennas TVs amplifiers etc.
Q: What’s the difference between a coax splitter and a coax tap?
A: A Tap is used in traditional cable installations to make a transitions from the feed line to runs throughout the building. The feed line is designed for long runs from the source and the taps are used to breakout the signal from the feed line. Taps usually will have one low loss port and one port with higher loss. The low loss port is used to connect the feed line. The port with the higher loss is used for the display.
A splitter is used to split one feed line into multiply signals. Each output of a splitter will have the same signal strength. When you split out the signal you only send half as much through each line. It is important to not 'stack' splitters since this loss is additive. Stacking too many splitter may cause your display or device to not function correctly.
| Features & Specs | ||
|---|---|---|
| Number of Splits | Number of outputs this splitter supports ? | 2-Way |
| Connector Type | The type of connectors used on this splitter? | F-Type Female |
| Frequency Range | Frequencies supported by this Splitter? | 5 to 2150 MHz |
| DC Passing Ports | Number of Ports that will allow DC power through the splitter ? | All Ports Power Passing |
| Grounding Block | Does this splitter have a grounding point? | Yes |
