2 Inch J-Hook with Angle Bracket Cable Support
| Quantity Discount Pricing | ||||
|---|---|---|---|---|
| 1-49 | 50-99 | 100-199 | 200-299 | 300+ |
| $5.39 | $5.19 | $4.85 | $4.53 | $4.38 |
Quantity Available: 290

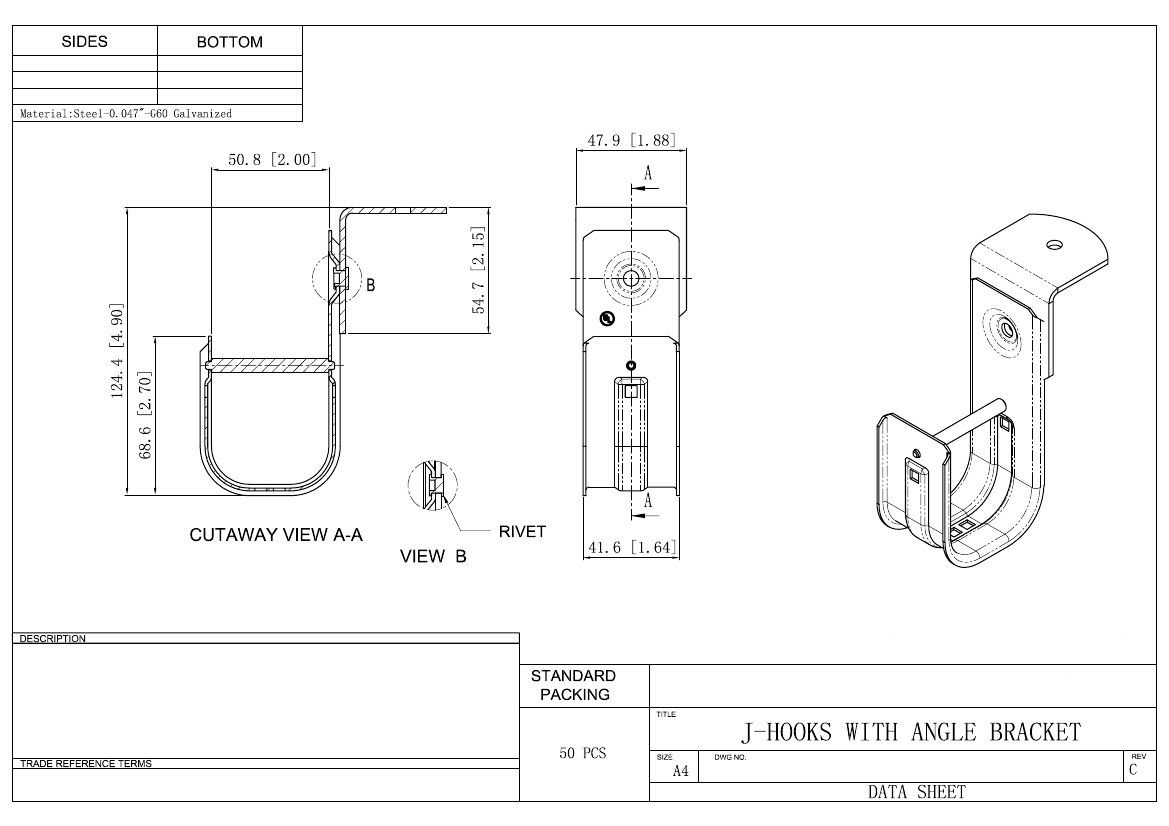

2 Inch J-Hook with Angle Bracket Cable Support
This 2 Inch J-Hook with Angle Bracket Cable Support can be attached to a wide variety of structures and materials. Using beam clamps, clips, screws, or nails, you can easily attach this J-Hook to a structure by using the pre-existing hole. These versatile hooks are designed to reduce the chance of damaging cables by providing great support, eliminating stress, and following the natural curves and bends of cable.
Features:
- 2 Inch
- Retainer Clip Included
- Supports All Cable Types
- Load Rating: 30 Lbs.
- Capacity: 80 Cat5e or 50 Cat6 Cables
- UL Listed
| Material | Metal |
|---|
Q: How much distance should I put between each of my cable supports?
A: You don’t want to put too much weight on any type of cable support. It is a good idea to put a cable support such as a J-Hook or Bridle Ring every 4 to 5 feet. This ensures that your cables will not stretch or fall under too much weight.
Q: What kind of support do I need for data cabling?
A: When you are dealing with sensitive high performance data cables such as fiber optic cables you need to use either J-Hooks or Bridle Rings with saddles. For all other cable types you can use any type of cable support such as standard Bridle Rings.
Q: How do I know what size J-Hook to buy for my cable run?
A:
¾ Inch J-Hook:
- Capacity: 16 Cab5e or 10 Cat6 Cables
1 5/16 Inch J-Hook:
- Capacity: 50 Cab5e or 32 Cat6 Cables
2 Inch J-Hook:
- Capacity: 80 Cab5e or 50 Cat6 Cables
4 Inch J-Hook:
- Capacity: 300 Cab5e or 185 Cat6 Cables
