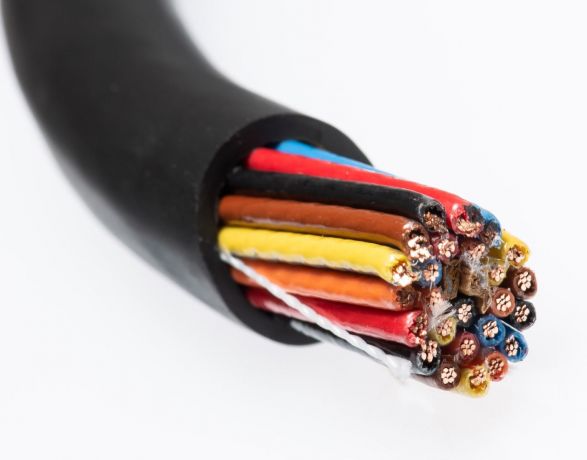

VNTC tray cable is a sturdy and adaptable cable suitable for transmitting power, control, relay or other types of signals in wet, dry or hazardous environments. It is most commonly used for power and control, telemetering, relay control, traffic control, switching, lighting and signal transmission. It is the preferred cable for factory or commercial applications.
VNTC tray cable can be installed in various types of conduit, ducts, raceways, and cable tray systems. It is flame retardant, sunlight resistant, burial rated, chemical and oil resistant and can be used in hazardous environments. It is rated to transmit 600v and has a temperature rating of 167° for wet applications and 194° in dry applications. It is also great for cold weather installations, being rated for both cold bend and cold impact resistance.
VNTC tray cable is a rugged cable used for wiring your mission-critical equipment, machinery, and systems.
Features
VNTC (Vinyl Nylon Tray Cable)
18 AWG
37 Conductor
Stranded
Bare Copper
600V
Unshielded
UV Resistant PVC Jacket
Color Code: ICEA METHOD 1 - TABLE E2 (see Resources Tab)
UL Listed
0.76 Inch OD
Per Foot
Applications
Power and Control
Telemetering
Relay Control
Traffic Control
Switching
Lighting and Signal Transmission
Please note: This product is cut to the length and is not returnable.
Any amount of cable ordered above the maximum continuous length of 1000 FT will be sent in seperate pieces.
