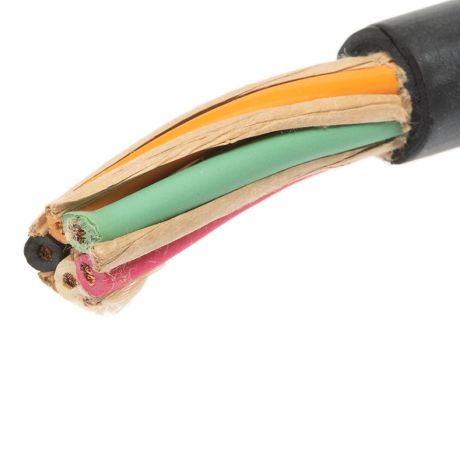

Portable cord is a multi-conductor cable used for temporary electrical power connections. Also, referred to as portable cordage, flexible cord, or extension cord the cable is used in a variety of commercial, industrial, and residential applications. Portable cords can be exposed to constant flexing and harsh environmental conditions including temperature extremes as well as oil, chemicals and abrasive materials. Portable Cord is the rugged, yet flexible cable needed for wiring your mission-critical equipment, machinery, and systems.
Features:
SOOW
Stranded
14 AWG
5 Conductor
Bare Copper
600V
90°C (194°F)
EPR Insulation (Ethylene Propylene Rubber)
CPE Thermoset Jacket (Chlorinated Polyethylene)
Meets MSHA Standards
RoHS
CSA
UL Listed
0.645 Inch OD
Black
Per FT
Applications
Portable Electrical Power and Control Cable
Ground Test
Motor Leads
Industrial Tools
Portable Lights
Battery Chargers
Equipment exposed to Oils, Solvents, Flame, and Grease.
Please note: This product is cut to the length and is not returnable.
Any amount of cable ordered above the maximum continuous length of 1000 FT will be sent in seperate pieces.
CONDUCTOR: Bare, annealed copper per ASTM B-3, flexible, bunch stranded per UL 62, a separator may be applied over the conductor
INSULATION: Synthetic rubber per UL 62
COLOR CODE: Per ICEA Method 1, Table E-1 (up to 21/C) except 3/C which is black, white, green
ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round, a separator is applied over the assembly
OVERALL JACKET: Black, oil-resistant thermoset compound per UL 62
STANDARDS: Meets the UL 62 requirements for Type SOOW, also meets CSA requirements for Type SOOW, accepted by MSHA and printed with the manufacturer's P number
AMPACITY: Based on a 30°C ambient temperature per 2008 NEC Table 400.5(A), the values are derated (where applicable) according to 2008 NEC Article 400.5
