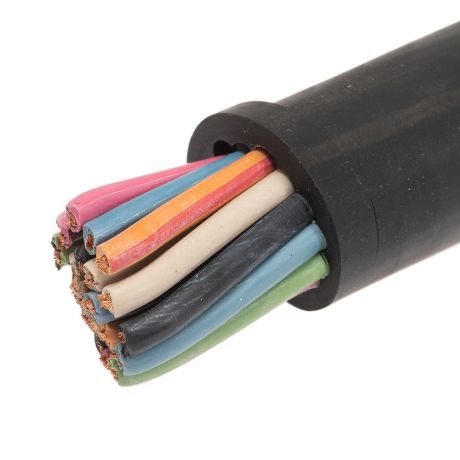

14 AWG - 20 Conductor - 600V - Stranded Conductor - SOOW - Portable Cord - 1000 FT
This product has been discontinued
Portable cord is a multi-conductor cable used for temporary electrical power connections. Also, referred to as portable cordage, flexible cord, or extension cord the cable is used in a variety of commercial, industrial, and residential applications. Portable cords can be exposed to constant flexing and harsh environmental conditions including temperature extremes as well as oil, chemicals and abrasive materials. Portable Cord is the rugged, yet flexible cable needed for wiring your mission-critical equipment, machinery, and systems.
Features:
- SOOW
- 14 AWG
- 20 Conductor
- Stranded
- Bare Copper
- 600V
- 90°C (194°F)
- EPR Insulation (Ethylene Propylene Rubber)
- CPE Thermoset Jacket (Chlorinated Polyethylene)
- Meets MSHA Standards
- RoHS
- CSA
- UL Listed
- 1.12 Inch OD
- Black
- 1000 FT
Applications
- Portable Electrical Power and Control Cable
- Ground Test
- Motor Leads
- Industrial Tools
- Portable Lights
- Battery Chargers
- Equipment exposed to Oils, Solvents, Flame, and Grease.
This product is not available for UPS/FedEx shipping due to weight over 150lbs. This product must ship via freight truck. Please select Ground Shipping when checking out. ShowMeCables will contact you with freight shipping details. The Ground Shipping paid will apply towards the cost of freight shipping. You can also contact us for a freight quote at 888-519-9505 or Sale@ShowMeCables.com
ICEA METHOD 1, TABLE E1
|
CONDUCTOR NUMBER |
INSULATION COLOR |
FIRST STRIPE |
SECOND STRIPE |
CONDUCTOR NUMBER |
INSULATION COLOR |
FIRST STRIPE |
SECOND STRIPE |
|
1 |
Black |
– |
– |
26 |
Orange |
Black |
White |
|
2 |
White |
– |
– |
27 |
Blue |
Black |
White |
|
3 |
Red |
– |
– |
28 |
Black |
Red |
Green |
|
4 |
Green |
– |
– |
29 |
White |
Red |
Green |
|
5 |
Orange |
– |
– |
30 |
Red |
Black |
Green |
|
6 |
Blue |
– |
– |
31 |
Green |
Black |
Orange |
|
7 |
White |
Black |
– |
32 |
Orange |
Black |
Green |
|
8 |
Red |
Black |
– |
33 |
Blue |
White |
Orange |
|
9 |
Green |
Black |
– |
34 |
Black |
White |
Orange |
|
10 |
Orange |
Black |
– |
35 |
White |
Orange |
Red |
|
11 |
Blue |
Black |
– |
36 |
Orange |
White |
Blue |
|
12 |
Black |
White |
– |
37 |
White |
Red |
Blue |
|
13 |
Red |
White |
– |
38 |
Black |
White |
Green |
|
14 |
Green |
White |
– |
39 |
White |
Black |
Green |
|
15 |
Blue |
White |
– |
40 |
Red |
White |
Green |
|
16 |
Black |
Red |
– |
41 |
Green |
White |
Blue |
|
17 |
White |
Red |
– |
42 |
Orange |
Red |
Green |
|
18 |
Orange |
Red |
– |
43 |
Blue |
Red |
Green |
|
19 |
Blue |
Red |
– |
44 |
Black |
White |
Blue |
|
20 |
Red |
Green |
– |
45 |
White |
Black |
Blue |
|
21 |
Orange |
Green |
– |
46 |
Red |
White |
Blue |
|
22 |
Black |
White |
Red |
47 |
Green |
Orange |
Red |
|
23 |
White |
Black |
Red |
48 |
Orange |
Red |
Blue |
|
24 |
Red |
Black |
White |
49 |
Blue |
Orange |
Red |
|
25 |
Green |
Black |
White |
50 |
Black |
Orange |
Red |
Technical Specs
- CONDUCTOR: Bare, annealed copper per ASTM B-3, flexible, bunch stranded per UL 62, a separator may be applied over the conductor
- INSULATION: Synthetic rubber per UL 62
- COLOR CODE: Per ICEA Method 1, Table E-1 (up to 21/C) except 3/C which is black, white, green
- ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round, a separator is applied over the assembly
- OVERALL JACKET: Black, oil-resistant thermoset compound per UL 62
- STANDARDS: Meets the UL 62 requirements for Type SOOW, also meets CSA requirements for Type SOOW, accepted by MSHA and printed with the manufacturer's P number
- AMPACITY: Based on a 30°C ambient temperature per 2008 NEC Table 400.5(A), the values are derated (where applicable) according to 2008 NEC Article 400.5
- TEMPERATURE: 90°C
- VOLTAGE: 600 V
