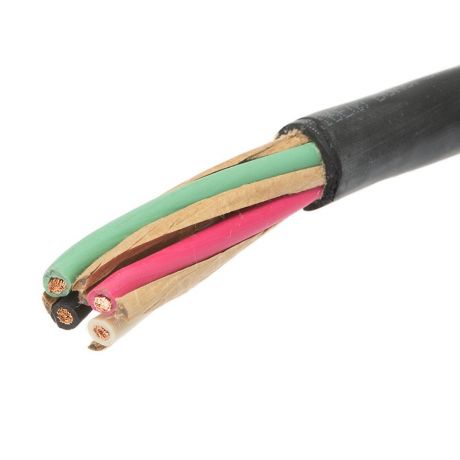

Portable cord is a multi-conductor cable used for temporary electrical power connections. Also, referred to as portable cordage, flexible cord, or extension cord the cable is used in a variety of commercial, industrial, and residential applications. Portable cords can be exposed to constant flexing and harsh environmental conditions including temperature extremes as well as oil, chemicals and abrasive materials. Portable Cord is the rugged, yet flexible cable needed for wiring your mission-critical equipment, machinery, and systems.
Features:
SJOOW
12 AWG
4 Concductor
Stranded
Bare Copper
300V
90°C (194°F)
EPR Insulation (Ethylene Propylene Rubber)
CPE Thermoset Jacket (Chlorinated Polyethylene)
Meets MSHA Standards
RoHS
0.465 Inch OD
Black
Per Foot
Applications
Portable Appliances
Small Motors
Small Tools
Light-Load Equipment
Equipment exposed to Oils, Solvents, Flame, and Grease.
Please note: This product is cut to the length and is not returnable.
Any amount of cable ordered above the maximum continuous length of 1000 FT will be sent in seperate pieces.
CONDUCTOR: Bare, annealed copper per ASTM B-3, flexible, bunch stranded per UL 62, a separator can be applied over the conductor
INSULATION: Synthetic rubber per UL 62 – COLOR CODE: Per ICEA Method 1, Table E-1 except 3/C which is black, white, green
ASSEMBLY: Insulated conductors are cabled with fillers as necessary to make round, a separator is applied over the assembly
OVERALL JACKET: Black, oil-resistant thermoset compound per UL 62
STANDARDS: Meets UL and CSA requirements for Type SJOOW
AMPACITY: Based on a 30°C ambient temperature per 2008 NEC Table 400.5(A), Column A, the values are derated (where applicable) according to 2008 NEC Article 400.5
