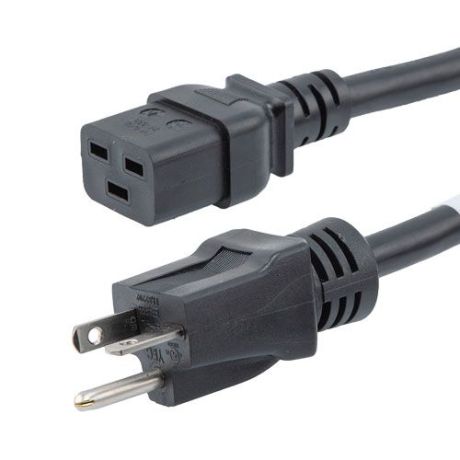

ShowMeCables NEMA 5-20P to C19, Power Cord, 12 AWG, 20 A, 125V, 3 FT
ShowMeCable's 44-233-003 large gauge power cord is designed for powering devices that have higher power requirements which are commonly found in data centers and larger server applications. This power cable is a NEMA 5-20P to C19 cable among the vast line of power cords from ShowMeCable. By utilizing this 44-233-003 power cord, you can eliminate space occupying cable slack and cable loops. This 125-volt extension cord’s connectors come in black color with C19 connectors.
The 44-233-003 power cable features 3 FT feet of cordage that is used to connect powered equipment such as PCs, servers, routers, and switches. These rugged power cords NEMA 5-20P to C19 connectors are common in large server rooms and datacenters where high-output devices such as PDUs (power distribution devices) are located. The 3 FT feet 44-233-003 is rated for 20 amps and 125 volts.
This NEMA 5-20P to C19 cord makes it easy to connect your devices to a power source. This 44-233-003 power cable is built with black PVC jacket. ShowMeCables have the largest in-stock selection of multi-length power cords, and the 44-233-003 is available for same-day shipment for domestic and international orders.
Our ShowMeCable’s power cord specialists are ready and available to answer any questions you may have on the 44-233-003 power cable. Contact ShowMeCable's expert technical support for assistance with the 20 A 125 V power cord and/or any power cords. Our knowledgeable sales team simplifies the purchasing process and ensures that your 44-233-003 power cable will be exact to spec.
Q: What is the difference between a SVT jacket and a SJT jacket?
A: SVT jackets are thinner and more flexible and only come in 17 or 18 AWG sizes. SJT cords have twice as much insulation making them less flexible. They can be produced in gauges sizes from 10 to 18 AWG.
Q: I'm not sure which power cable I need. Can you help?
A: The different power connectors can be confusing. We have a chart on the resources tab to help you determine which connector you need.
Q: Is a 10 amp cable sufficient for powering my devices?
A: The 10 amp version is the most cost efficient cable. It will handle most computer applications because PCs draw very low amperages.
IEC connectors are the standard connectors as recognized by the International Electrotechical Commission. They are non-locking connectors rated up to 250 volts. The IEC standard uses a numerical approach to distinguish which is the outlet and which is the inlet. All odd numbers (C5 C13 etc.) are the outlets which plug into the even number inlet. The odd number connectors mate with the even number directly after them. For example a C13 plugs into a C14 but will not plug into a C12.
IEC 60320 Standard Power Connectors
Outlet
Inlet
Grounded
Max Amperage
Notes
C5
C6
Yes
2.5
Laptops, Apple, iMac sometimes referred to as "Mickey Mouse" connector
C7
C8
No
2.5
Non-Polarized version. Very common plug found on audio video equipment laptop power supplies.
C7
C8
No
2.5
Polarized version. Very common plug found on audio video equipment laptop power supplies
C13
C14
Yes
10 or 15
Very common found on most computers and peripherals
C15
C16
Yes
10 or 15
Used for small appliances that get very hot.
C19
C20
Yes
16 or 20
2005 PowerMac Cisco, Power Supplies Ciscoo, Chassis Dell workstations.
NEMA connectors are the standard connectors as recognized by the U.S. National Electrical Manufacturers Association for AC power. The standard is comprised of both locking and non-locking connectors rated up to 600 volts. The NEMA standard uses an alphabetical approach to distinguish which is the plug and which is the receptacle. The letter P designates the plug and a R designates the receptacle. For example a 5-15P will plug into a 5-15R.
NEMA Power Connectors
120VAC Power Connectors
Receptacle
Plug
Grounded
Max Amperages
Notes
1-15R
1-15P
No
15
Typical two prong connector found on lamps, radio clocks, and other small electronics
5-15R
5-15P
Yes
15
Typical three prong connector found in modern homes. It is also found on countless electronic devices.
L5-15R
L5-15P
Yes
15
Locking version of the 5-15
5-20R
5-20P
Yes
20
20 amp connector. 5-20 recepticles will accept a 5-15 plug.
