ShowMeCables SMC-600 is designed for flexibility, low loss, RF shielding, and weather ability. SMC-600 cable design enables the tightest bend radius for any cable of similar size and performance. The cable has the lowest loss of any comparable cable. With 90 dB of RF shielding this cable is suitable for applications with a large amount of EMI. SMC-600 can be installed both in and outdoors. Use SMC-600 cable for any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable.

Features:

Price Per Foot
Cable Type: SMC-600
LMR-600 Equivalent
Impedance: 50 ohm
Center Conductor: Bare Copper Covered Aluminum (BCCAI)
Jacket: Polyethylene (PE)
Outer Diameter: .59 inch
Indoor/Outdoor Rated
Attenuation @ 900 MHz/100 ft: 2.5dB/100ft
Attenuation @ 2.4 GHz/100 ft: 4.3dB/100ft
Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable
Max Continuous Length: 500 FT

LMR® is a Registered Trademark of Times Microwave Systems.

Please note: All products that are bought per foot are non-returnable.

Any amount of cable you order above the maximum continuous length of 500 FT will be sent in separate pieces.

Reviews

Write Your Own Review

Resources

Cable	Jacket	Inner Conductor Material	Inner Conductor Diameter (mm)	Dielectric	Outer Conductor (Shield)	Overall Braid	Bend Radius (mm)	Velocity of Propagation (%)	Dielectric Constant	Impedance	Capacitance	DC Resistance (loop)	Voltage Rating	Frequency Range
80-600-190 BK	PVC	CCS	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	149 Ohms	60 VDC	3 GHz
80-110-520 BK	PVC	Cu	1.63	Foam PE	AL foil	AL wire	120 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	30.43 Ohms	60 VDC	3 GHz
80-110-560 BK	PVC	CCS	1.63	Foam PE	AL foil	AL wire	120 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	63.5 Ohms	60 VDC	3 GHz
80-110-600 BK	PE	CCS	1.63	Foam PE	AL foil	AL wire	120 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	63.5 Ohms	60 VDC	3 GHz
80-111-195 BK	PE	Cu	0.94	Foam PE	AL foil	TC wire	127 mm	75%	1.78	50 Ohms	80 pF/m	41.6 Ohms		3 GHz
80-150-240 BK	PE	Cu	1.42	Foam PE	AL foil	TC wire	127 mm	83%	1.45	50 Ohms	80 pF/m	23.9 Ohms		3 GHz
80-150-400 BK	PE	CCA	2.74	Foam PE	AL foil	TC wire	210 mm	85%	1.4	50 Ohms	78 pF/m	10.3 Ohms		3 GHz
80-580-100 BK	PVC	Cu	.9	Solid PE		Cu wire	50 mm	66%	2.3	50 Ohms	31.2 pF/m	46.2 Ohms	24 VDC	1 GHz
80-590-130 BK	PVC	Cu	.81	Foam PE		Cu wire	60 mm	83%	1.5	75+/-3 Ohms	53.2 pF/m	49 Ohms	24 VDC	1 GHz
80-590-185 BK	PVC	Cu	.81	Foam PE		Cu wire	60 mm	83%	1.5	75+/-3 Ohms	53.2 pF/m	49 Ohms	24 VDC	1 GHz
80-600-190 WH	PVC	CCS	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	149 Ohms	60 VDC	3 GHz
80-600-220 BK	PVC	CCS	1.02	Foam PE	AL foil	AL wire	75 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	126.3 Ohms	60 VDC	3 GHz
80-600-250 BK	PVC	Cu	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	62.5 Ohms	60 VDC	3 GHz
80-600-250 WH	PVC	Cu	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	62.5 Ohms	60 VDC	3 GHz
80-600-280 BK	PVC	CCS	1.02	Foam PE	AL foil	AL wire	70 mm	85%	1.4	75+/-3 Ohms	53.2 pF/m	149 Ohms	60 VDC	3 GHz

Specification

Click Here to Download the Spec Sheet

Quantity Discount Pricing
1-49	50-499	500-749	750-999	1000+
$4.13	$3.68	$3.49	$3.27	$3.16

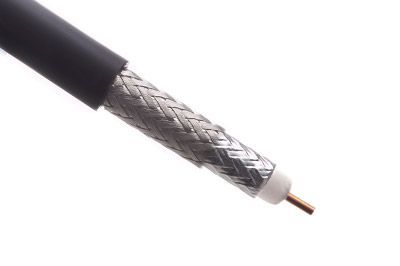

Low Loss Comparable to LMR-600 Coaxial Cable - Black - Per FT
