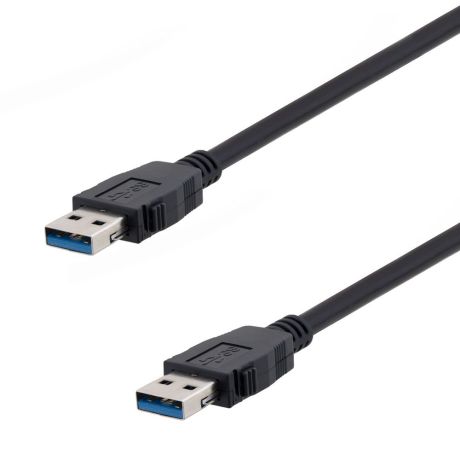

L-com USB 3.0 Cable Latching Type A - A - Low Smoke Zero Halogen (LSZH) Jacket - Black

These unique cable assemblies from L-com feature two latching Type A USB plugs which provide lock down mating retention with any USB Type A jack. They provide extra strength in keeping the connector plugged into the port and contain easy quick release tabs on both sides of the connector. Low Smoke Zero Halogen (LSZH) Jacket for shipboard, aircraft or other usage especially where PVC use is restricted. Fully shielded and USB 3.0 compliant, this cable contains two 24 AWG power conductors and one 30 AWG pair for the data lines. Color is black.

Features:

Connector 1: USB Latching Type A Male
Connector 2: USB Latching Type A Male
Latching Connectors with quick release
30 AWG
Transfer rates up to 5 Gbps
Backwards compatible with USB specifications 1.0, 1.1 and 2.0

Reviews

Write Your Own Review

Resources

USB Connector Guide
Connector Type	Picture	Common Use
USB 2.0 A Male		Commonly plugged into the USB port on a computer
USB 2.0 A Female		Commonly used for extending the length of an existing USB cable. USB A Male is able to plug into this connector
USB 2.0 B Male		Commonly used on a printer external hard drive and other USB Devices
USB 2.0 Micro Male		Commonly used on new smartphones and other USB devices
USB 2.0 Mini Male		Commonly used on cell phones digital cameras and GPS devices
USB 2.0 Mini Female		Commonly used to extend the length of an existing USB mini cable
USB 3.0 A Male		Commonly used on USB 3.0 devices
USB 3.0 B Male		Commonly used on USB 3.0 printers and other USB devices
USB 3.0 Micro		Commonly used on USB 3.0 hubs and other devices

Specification

Click Here to Download the Spec Sheet

Quantity Discount Pricing
1-24	25-49	50-99	100-249	250-499	500+
$35.79	$34.06	$32.33	$30.85	$29.37	$28.38
