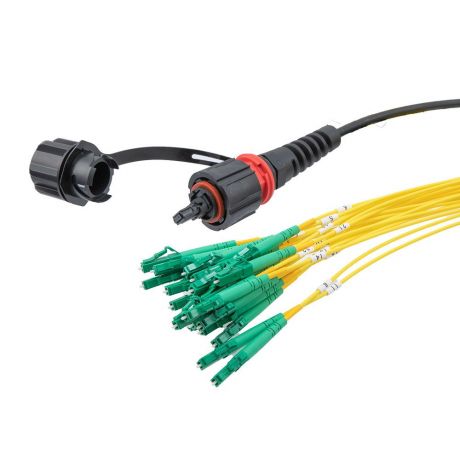

IP68 ODVA MPO/APC Female to LC/APC 0.5 M Fan-out, 5 Meter Cable Assembly, 24 Fiber, Single-Mode, LSZH Outdoor rated
The L-com FOCS2ODMPFBLCA24-5 from ShowMeCables is an IP68 ODVA MPO/APC female to LC/APC fan-out cable assembly designed for broadcast, renewable energy, military, and oil and gas industries. This fiber optic cable assembly with a 0.5-meter fan-out length has ≥ 55 dB return loss and ≤ 0.75 dB insertion loss. The 24-fiber outdoor-rated cable assembly is chemical resistant, waterproof, and has dust protection and high durability for outdoor environments.
The push-on fiber optic cable assembly with 24 strands is available in 5-meter length and black color. This ODVA MPO female to LC fan-out cable assembly comes with a single-mode fiber. The ruggedized outdoor cable assembly is compatible and interchangeable with new or existing ODVA cable deployments. This fiber optic cable assembly features a glass core and a low smoke zero halogen (LSZH) jacket burn rating.
The FOCS2ODMPFBLCA24-5 industrial outdoor fiber optic cable assembly can operate at temperatures ranging from -40 to 70 degrees C. This optical fiber cable assembly has a 100lbs superior pull force and is suitable for distributed antenna systems, 5G small cells, and fiber-to-the-antenna (FTTA) applications. The between-series cable assembly has a simple bayonet locking system for added protection and is easy to install on LTE, DAS, and mobile cell towers. It has low insertion loss and exceeds ODVA requirements for harsh environments.
ShowMeCables has the largest in-stock selection of 24-fiber, fan-out cable assemblies in black with same-day shipping for domestic and international orders. Your company can rely on ShowMeCables to provide the best fiber optic cable assembly. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality single-mode outdoor-rated cable assembly for your requirements.
