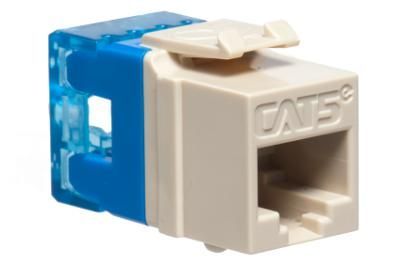

ICC's High Density Cat5e Modular Jacks are designed to maximize the number of jacks in a patch panel, wall plate, or surface-mount box. The IDC terminations are oriented 180 degrees from the Cat5e jack, which allows easy access in a high-density install. A color-coded sticker shows the wiring configuration for both TIA 568-A or TIA 568-B.

Features:

Manufacturer:ICC
Connector: RJ45
Rear Termination: 110 type IDC Termination
Color: Ivory
Meet EIA/TIA Cat 5e Standard
TSB 568A or 568B UL-Listed

Reviews

Write Your Own Review

You're reviewing:ICC Cat5e RJ45 Punchdown Keystone Jack - High Density - Ivory

Nickname

Summary

Review

Resources

TIA/EIA-568 Wiring Diagram for Cat5e Keystone Jacks
IDC	T568A		T568B
Terminals	Pair	Wire Color	Pair	Wire Color
PIN5	1	White/Blue	1	White/Blue
PIN4	1	Blue	1	Blue
PIN1	3	White/Green	2	White/Orange
PIN2	3	Green	2	Orange
PIN3	2	White/Orange	3	White/Green
PIN6	2	Orange	3	Green
PIN7	4	White/Brown	4	White/Brown
PIN8	4	Brown	4	Brown

Specification

Click Here to Download the Spec Sheet

Click Here to Download Installation Instructions

Warning

Quantity Discount Pricing
1-24	25-49	50-99	100-249	250+
$8.09	$7.76	$7.42	$6.87	$6.31
